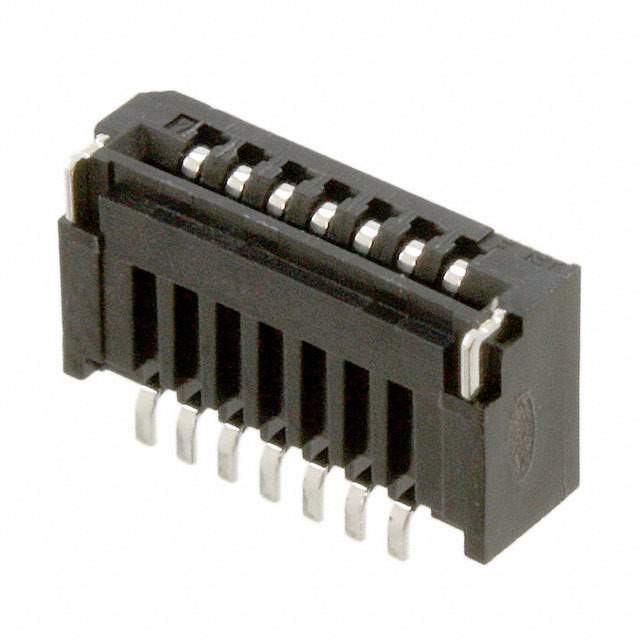

07FMN-SMT-A-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

07FMN-SMT-A-TF(LF)(SN)

Part No 07FMN-SMT-A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Flat Flex Cables (FFC, FPC)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr JST Sales America Inc.
Series FMN
Package Tape & Reel
Flat Flex Type FFC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 7
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.118" (3.00mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Features Low Insertion Force (LIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Base Product Number 07FMN-SM
Other Names 07FMNSMTATFLFSN,455-1924-1,455-1924-6,455-1924-2
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1294093-07FMN-SMT-A-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 07FMN-SMT-A-TF(LF)(SN) CAD Model

Description

The 1294093-07FMN-SMT-A-TF(LF)(SN) is a 7-position FFC, FPC (Flat Flexible) connector from JST Sales America Inc.

  • Positions: 7
  • Mounting: Surface Mount, Right Angle
  • Pitch: 0.039 inches
  • Feature: Low Insertion Force (LIF)
  • Contact Finish: Tin
  • Voltage Rating: 50V
  • Insulating Material: Polyamide (PA6T), Nylon 6T
  • Material Flammability Rating: UL94 V-0
  • Housing Material: Polyamide (PA6T), Nylon 6T
  • Housing Color: Black
  • Operating Temperature: -25°C to 85°C
  • Supply and Demand Status: Limited
