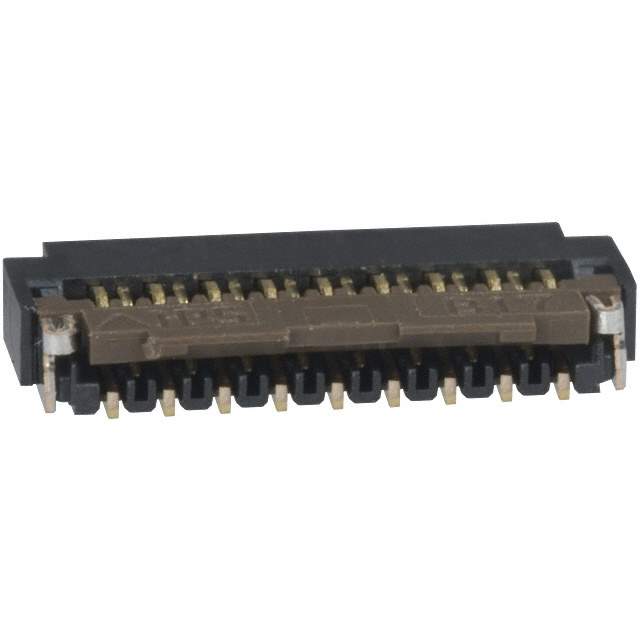

FH26W-17S-0.3SHW(60) Real Image
Same model may have multiple batches, images only for reference.

FH26W-17S-0.3SHW(60)

Part No FH26W-17S-0.3SHW(60)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC/FFC 17POS .3MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Flat Flex Type FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 17
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 HB
Current Rating (Amps) 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805089-FH26W-17S-0.3SHW(60)
Ultra Librarian 3D Model Ultra Librarian FH26W-17S-0.3SHW(60) CAD Model

Description

The FH26W-17S-0.3SHW(60) is a surface mount right angle connector from Hirose Electric Co Ltd with a zero insertion force (ZIF) feature.

  • Positions: 17
  • Pitch: 0.012 inches (0.30mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 30V
  • Height Above Board: 0.039 inches (1.00mm)
  • Flat Flex Type: FPC
  • Connector/Contact Type: Contacts, Bottom
  • FFC, FCB Thickness: 0.20mm
  • Locking Feature: Flip Lock
  • Cable End Type: Tapered
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Actuator Material: Polyamide (PA), Nylon
  • Material Flammability Rating: UL94 HB
  • Housing Color: Black
  • Mating Cycles: 10
  • Temperature Range: -55 degrees Celsius to 85 degrees Celsius
  • Actuator Color: Brown
  • Popularity: Medium
  • Manufacturer Pack Quantity: 5,000
  • MSL Level: 1 (unlimited)
  • Current Rating (amps): 0.2A
