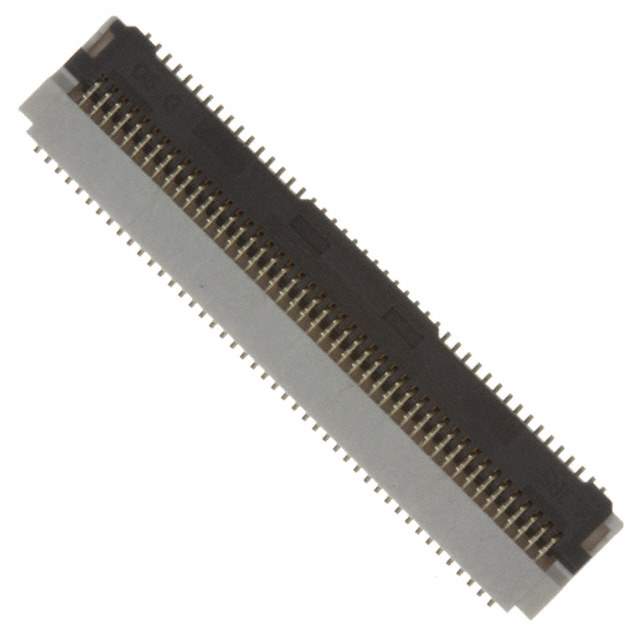

FH29-90S-0.2SHW(05)

Get a Quote

Part No	FH29-90S-0.2SHW(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 90POS 0.20MM R/A
Datasheet	FH29-90S-0.2SHW(05) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Obsolete(EOL)
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	90
Pitch	0.008" (0.20mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.047" (1.20mm)
Locking Feature	Flip Lock
Cable End Type	Tabbed
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Features	Zero Insertion Force (ZIF)
Voltage Rating	40V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.25A
Contact Finish Thickness	Flash
Housing Color	Beige
Actuator Color	Brown
Win Source Part Number	1038771-FH29-90S-0.2SHW(05)
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian FH29-90S-0.2SHW(05) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd FH29-90S-0.2SHW(05) connector is a 90-position, 0.20mm pitch, FPC connector with a flip lock mechanism.

Contact: Zero insertion force (ZIF)
Contact Finish: Gold with flash plating
Voltage Rating: 40V
Current Rating: 0.25A
Height: 1.20mm above the board
Material: Liquid crystal polymer (LCP)
Flammability Rating: UL94 V-0
Housing Color: Beige
Mounting: Surface-mounted at a right angle
