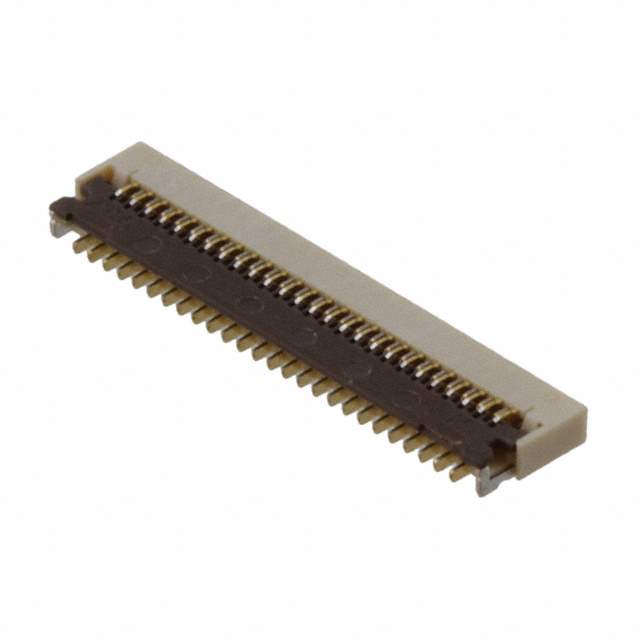

FH43BW-51S-0.2SHW(10) Real Image
Same model may have multiple batches, images only for reference.

FH43BW-51S-0.2SHW(10)

Part No FH43BW-51S-0.2SHW(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 51POS .2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Flat Flex Type FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 51
Pitch 0.008" (0.20mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Polyamide (PA), Nylon, Halogen Free
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness 1.97μin (0.050μm)
Housing Color Beige
Actuator Color Black
Mating Cycles 10
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805125-FH43BW-51S-0.2SHW(10)
Ultra Librarian 3D Model Ultra Librarian FH43BW-51S-0.2SHW(10) CAD Model

Description

The 805125-FH43BW-51S-0.2SHW(10) connector from Hirose Electric Co Ltd features 51 contacts.

  • Contacts: 51
  • Mounting Style: Surface Mount/Right Angle
  • Zero Insertion Force (ZIF): Yes
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 30V
  • Height Above Board: 0.035" (0.88mm)
  • Material Flammability Rating: UL94 V-0
  • Pitch: 0.008" (0.20mm)
  • Locking Feature: Flip Lock
  • Cable End Type: Tabbed
  • Temperature Range: -55°C to 85°C
