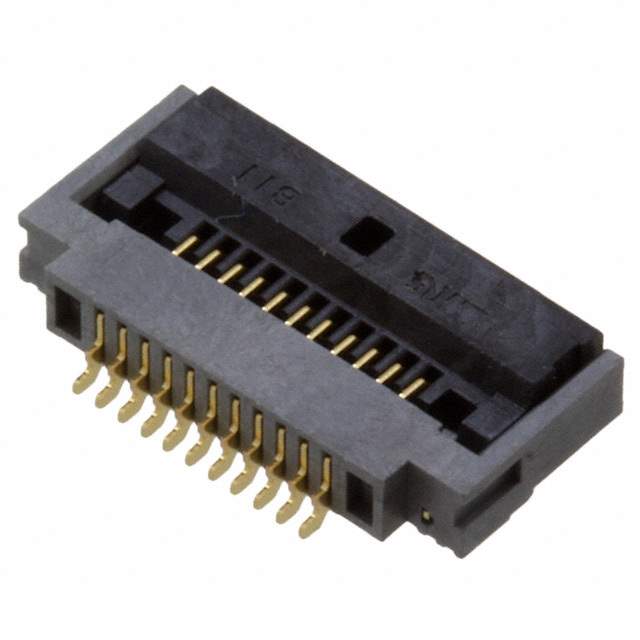

The FH52-11S-0.5SH is a Flat Flexible Cable (FFC) connector produced by Hirose Electric Co. Ltd. It's designed to connect FFC/FPC (Flexible Printed Circuit) cables with a fine 0.5mm pitch. These connectors are frequently used in electronic devices where space is constrained, and a reliable, high-density connection is needed.

Applications:

• Smartphones: Connecting display panels, camera modules, and other internal components.
• Tablets: Used for connecting LCD screens, touch panels, and peripheral devices.
• Digital Cameras: Connecting image sensors, displays, and control circuits.
• Portable Gaming Consoles: Connecting LCD screens and button arrays to the mainboard.
• Wearable Devices: Smartwatches and fitness trackers utilize these connectors for internal connections.

Features:

• Number of Contacts: 11
• Pitch: 0.5mm
• Mounting Type: Surface Mount Technology (SMT)
• Actuator Type: Top Contact (Flip Lock)
• RoHS Compliant: Lead-free and environmentally friendly.
• High-Density Design: Compact size for space-constrained applications.

Benefits:

• Space Optimization: Small footprint enables high-density component placement.
• Secure Connection: Flip-lock actuator ensures reliable cable retention.
• Easy Integration: SMT compatibility simplifies assembly and soldering.
• Durability: Designed to withstand repeated cable insertions and removals.
• Versatility: Suitable for a wide range of FFC/FPC cable applications in portable electronics.

Additional Information:

The FH52 series features a flip-lock actuator for easy and secure FFC/FPC cable insertion. The actuator applies consistent pressure to the cable, ensuring a reliable electrical connection. Proper insertion involves fully inserting the FFC/FPC cable into the connector until it is properly seated, then closing the flip-lock actuator. For detailed specifications, including voltage rating, current rating, insulation resistance, contact resistance, and durability, consult the official Hirose FH52-11S-0.5SH datasheet.
