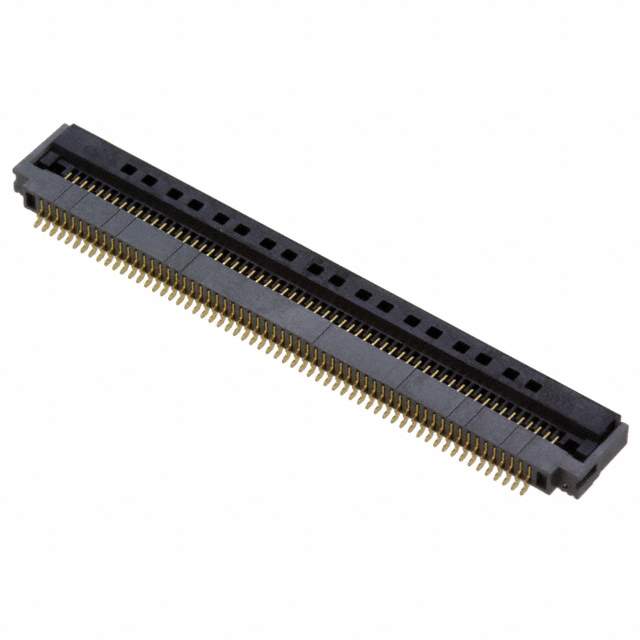

FH52-60S-0.5SH(99) Real Image
Same model may have multiple batches, images only for reference.

FH52-60S-0.5SH(99)

Part No FH52-60S-0.5SH(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 60POS 0.50MM R/A
Datasheet
FH52-60S-0.5SH(99) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 60
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Contact Finish Thickness 1.25μin (0.03μm)
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Win Source Part Number 1038833-FH52-60S-0.5SH(99)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian FH52-60S-0.5SH(99) CAD Model

Description

The FH52-60S-0.5SH(99) is a surface-mount, right-angle connector from Hirose Electric Co Ltd that is ideal for use in FFC and FPC applications.

  • Pitch: 0.020" (0.50mm)
  • Positions: 60
  • Cable End Type: tabbed
  • Locking Feature: flip lock
  • Connector/Contact Type: contacts, bottom
  • FFC, FCB Thickness: 0.30mm
  • Housing Material: liquid crystal polymer (LCP)
  • Actuator Material: liquid crystal polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Housing Color: gray
  • Actuator Color: black
  • Current Rating: 0.5A
  • Height Above Board: 0.079" (2.00mm)
  • Temperature Range: -40°C to 105°C
  • Supply and Demand Status: balanced
  • Package Quantity: 500 pieces
