Same model may have multiple batches, images only for reference.

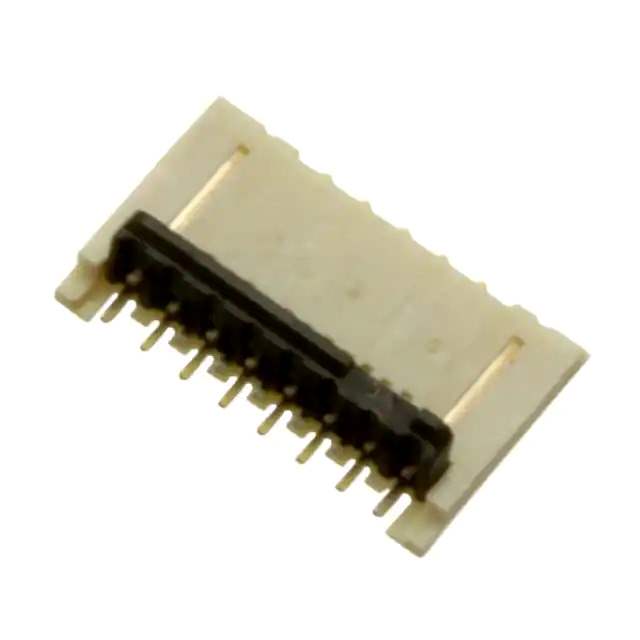

FH64MA-11S-0.25SHW Real Image
Same model may have multiple batches, images only for reference.

FH64MA-11S-0.25SHW

Part No FH64MA-11S-0.25SHW
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC TOP 11POS 0.25MM R/A
Datasheet
FH64MA-11S-0.25SHW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH64MA
Package Tape & Reel
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 11
Pitch 0.010" (0.25mm)
Termination Solder
FFC, FCB Thickness 0.12mm
Height Above Board 0.020" (0.50mm)
Locking Feature Flip Lock, Backlock
Cable End Type Notched
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Polyamide (PA), Nylon
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness 1.25µin (0.03µm)
Housing Color Beige
Actuator Color Black
Mating Cycles 10
Base Product Number FH64M
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 849053-FH64MA-11S-0.25SHW
Ultra Librarian 3D Model Ultra Librarian FH64MA-11S-0.25SHW CAD Model

Description

The 849053-FH64MA-11S-0.25SHW is a FFC, FPC connector assembly from Hirose Electric Co Ltd.

  • Series: FH64MA
  • Positions: 11
  • Pitch: 0.010" (0.25mm)
  • Termination: Solder
  • Contact Finish: Gold, 1.25µin (0.03µm)
  • Package: Tape & Reel
  • Standard Package: 5,000 pieces
  • Voltage Rating: 30V
  • Height Above Board: 0.020" (0.50mm)
  • Suitable for: FPC Flat Flex Type
  • Contacts: Top
  • Housing Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Flammability Rating: UL94 V-0
  • Housing Color: Beige
  • Mating Cycle: 10
  • MSL Level: 1
  • HTSUS Code: 8536.69.4051
