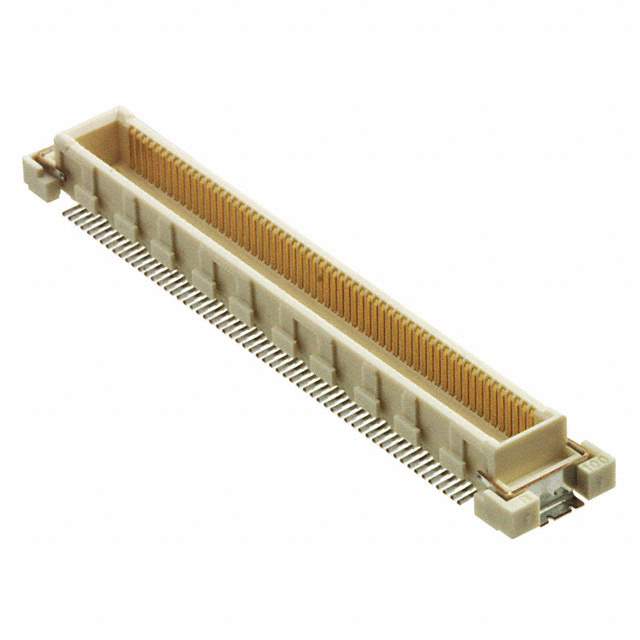

Same model may have multiple batches, images only for reference.

FX10A-120P-SV(71)

Name: FX10A-120P-SV(71)
Brand: Hirose Electric Co Ltd
SKU: 1332880
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FX10A-120P-SV(71)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 120POS SMD GOLD / 120 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	FX10A-120P-SV(71) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer	Hirose Electric Co Ltd
Packaging	Tray
Connector Type	Header, Outer Shroud Contacts
Number of Positions	120
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	Surface Mount
Features	Board Guide, Solder Retention
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	4mm
Height Above Board	0.138" (3.50mm)
Base Product Number	FX10
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	H12044,FX10A-120P-SV(71)-ND,FX10A120PSV71,570-0042-2-71
Standard Package	60
Win Source Part Number	1332880-FX10A-120P-SV(71)
Ultra Librarian 3D Model	Ultra Librarian FX10A-120P-SV(71) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd FX10A-120P-SV(71) is a two-row, 120-position rectangular connector array with a 0.020" (0.50mm) pitch.

Rows: Two
Positions: 120
Pitch: 0.020" (0.50mm)
Mounting Type: Surface Mount
Connector Type: Outer Shroud Header
Contact Finish: Gold
Features: Board Guide, Solder Retention
Mated Stacking Height: 4mm
Height Above Board: 0.138" (3.50mm)
RoHS3 Compliant: Yes
Standard Package: 60
Applications: Mezzanine (Board to Board), Edge Type
