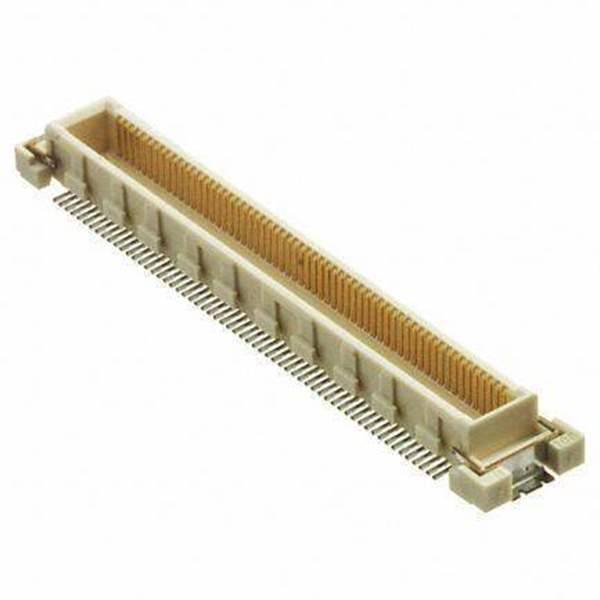

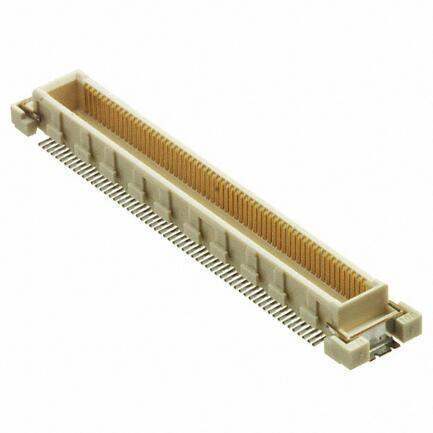

FX10A-120P-SV(91)Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX10A-120P-SV(91)

Part No FX10A-120P-SV(91)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN HDR 120POS SMD GOLD
Datasheet
FX10A-120P-SV(91) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Part Status Active
Connector Type Header, Outer Shroud Contacts
Pitch 0.020" (0.50mm)
Mounting Type Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 4mm
Height Above Board 0.138" (3.50mm)
Win Source Part Number WS1305802-FX10A-120P-SV(91)
Ultra Librarian 3D Model Ultra Librarian FX10A-120P-SV(91) CAD Model

Description

120 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
