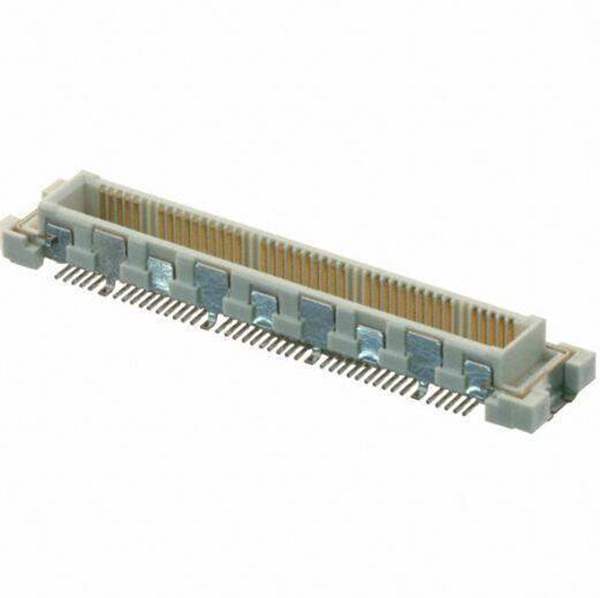

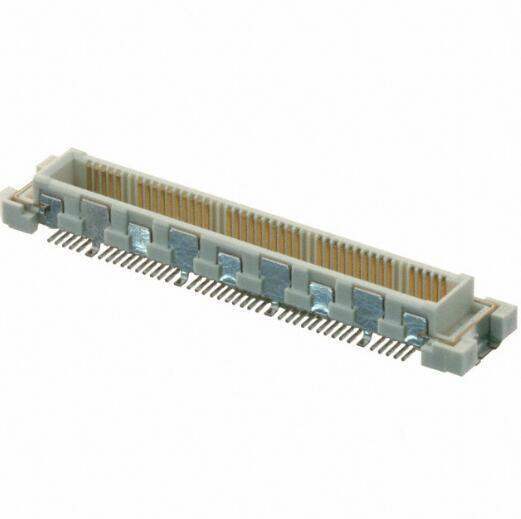

FX11A-80P/8-SV0.5(92) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX11A-80P/8-SV0.5(92)

Part No FX11A-80P/8-SV0.5(92)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN HDR 80POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Category Hirose Electric Co Ltd
Packaging Tape & Reel (TR)
Part Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 80
Pitch 0.020" (0.50mm)
Mounting Type Surface Mount
Mounting Type Board Guide, Ground Plate, Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Win Source Part Number WS1305439-FX11A-80P/8-SV0.5(92)
Ultra Librarian 3D Model Ultra Librarian FX11A-80P/8-SV0.5(92) CAD Model

Description

80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
