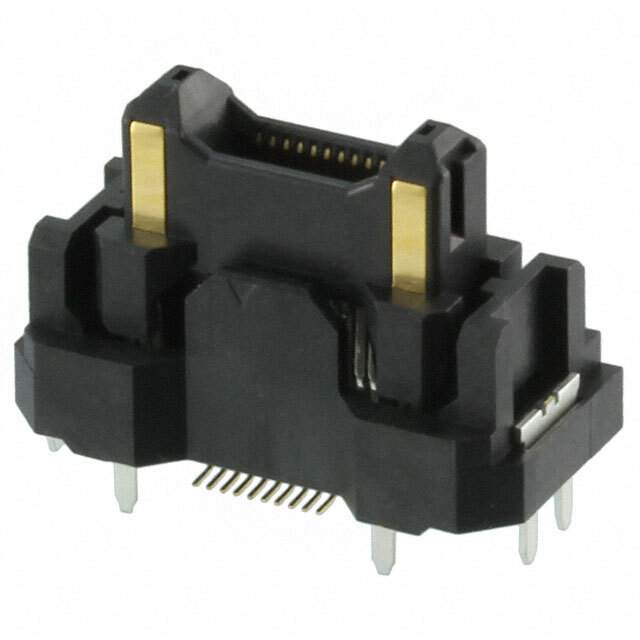

Same model may have multiple batches, images only for reference.

FX23-20P-0.5SV15

Name: FX23-20P-0.5SV15
Brand: Hirose Electric Co Ltd
SKU: 1340750
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FX23-20P-0.5SV15
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 20POS SMD GOLD / 24 (20 + 4 Power) Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	FX23-20P-0.5SV15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	FunctionMax™ FX23
Package	Tray
Connector Type	Header, Outer Shroud Contacts
Number of Positions	24 (20 + 4 Power)
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	15mm, 20mm
Height Above Board	0.507" (12.88mm)
Base Product Number	FX23
Standard Package	84
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340750-FX23-20P-0.5SV15
Ultra Librarian 3D Model	Ultra Librarian FX23-20P-0.5SV15 CAD Model

Alternative Products

Description

The FunctionMax™ FX23 series header connector is an ideal choice for applications requiring a reliable and efficient connection from Hirose Electric Co Ltd.

Number of Positions: 20
Number of Rows: 2
Features: Outer Shroud Contacts, Board Guide
Pitch - Mating: 0.020" (0.50mm)
Current Rating: 1A
Contact Finish Thickness - Mating: 4.00µin (0.100µm)
Mounting Type: Surface Mount
Height Above Board: 0.507" (12.88mm)
Application: Mezzanine (Board to Board)
Packaging: Tray
Standard Package: 84
