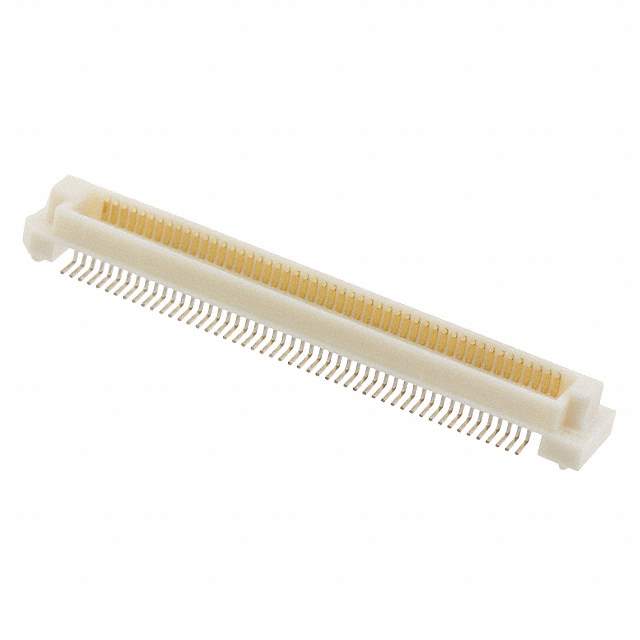

FX8-100P-SV1(92) Real Image
Same model may have multiple batches, images only for reference.

FX8-100P-SV1(92)

Part No FX8-100P-SV1(92)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 100POS SMD GOLD / 100 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
FX8-100P-SV1(92) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Connector Type Header, Outer Shroud Contacts
Number of Positions 100
Pitch 0.024" (0.60mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 4mm
Height Above Board 0.152" (3.85mm)
Base Product Number FX8
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number Q7165861DE,578-0045-1-92,T2003915A
Standard Package 1,000
Win Source Part Number 1333106-FX8-100P-SV1(92)
Ultra Librarian 3D Model Ultra Librarian FX8-100P-SV1(92) CAD Model

Description

The Hirose Electric Co Ltd FX8-100P-SV1(92) connector is an edge type mezzanine connector with a 100-position layout.

  • Pitch: 0.024" (0.60mm)
  • Design: Outer Shroud Contacts
  • Contact Finish: Gold
  • Height Above Board: 0.152" (3.85mm)
  • Mounting Type: Surface-Mounted
  • Mated Stacking Height: 4mm
  • RoHS Compliant: Yes
  • Standard Package: 1,000
