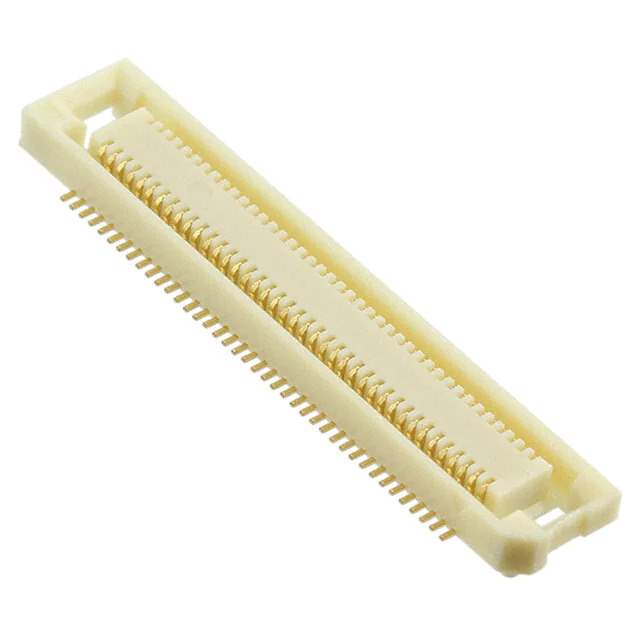

FX8-80S-SV(22) Real Image
Same model may have multiple batches, images only for reference.

FX8-80S-SV(22)

Part No FX8-80S-SV(22)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 80POS SMD GOLD / 80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
FX8-80S-SV(22) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX8
Package Tape & Reel
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 80
Pitch 0.024" (0.60mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 3mm, 4mm
Height Above Board 0.089" (2.26mm)
Base Product Number FX8
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 872463-FX8-80S-SV(22)
Ultra Librarian 3D Model Ultra Librarian FX8-80S-SV(22) CAD Model

Description

The 872463-FX8-80S-SV(22) is a rectangular connector array from the FunctionMax™ FX8 series by Hirose Electric Co Ltd. It is designed for edge type mezzanine (board to board) connections.

  • Pitch: 0.024" (0.60mm)
  • Positions: 80
  • Connector Type: Receptacle
  • Contact Style: Center strip contacts
  • Feature: Board guide
  • Mounting: Surface mount
  • Package: Tape & reel
  • Height Above Board: 0.089" (2.26mm)
  • Contact Finish: Gold
  • Product Status: Active
  • Standard Package: 1,000 pcs
