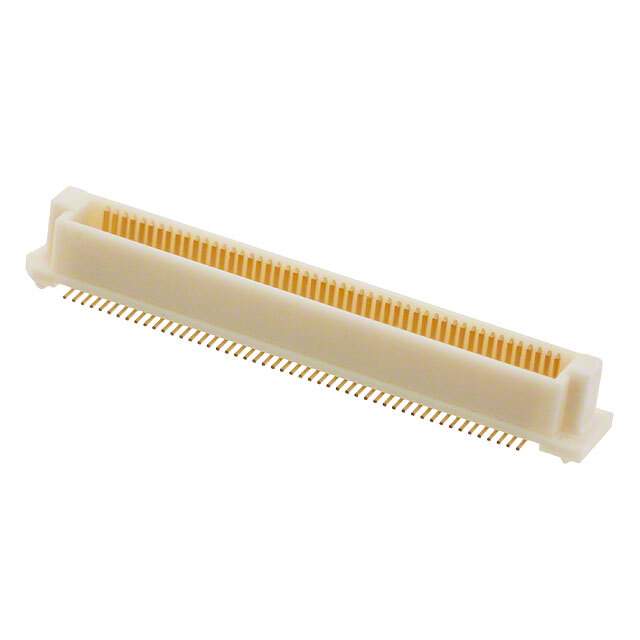

Same model may have multiple batches, images only for reference.

FX8C-100P-SV(93)

Name: FX8C-100P-SV(93)
Brand: Hirose Electric Co Ltd
SKU: 1293994
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FX8C-100P-SV(93)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	FunctionMax™ FX8C
Package	Tape & Reel (TR)
Connector Type	Header, Outer Shroud Contacts
Number of Positions	100
Pitch	0.024" (0.60mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide
Contact Finish	Gold
Mated Stacking Heights	5mm, 10mm
Height Above Board	0.175" (4.45mm)
Base Product Number	FX8
Other Names	578-0505-0-93
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293994-FX8C-100P-SV(93)
Ultra Librarian 3D Model	Ultra Librarian FX8C-100P-SV(93) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd FunctionMax™ FX8C is a 100-position header connector with outer shroud contacts.

Series: FunctionMax™ FX8C
Positions: 100
Connector Type: Header connector with outer shroud contacts
Pitch: 0.024" (0.60mm)
Packaging: Tape & reel
Features: Board guide
Rows: Two
Contact Finish: Gold
Height Above the Board: 0.175" (4.45mm)
Applications: Automotive, consumer electronics, and medical equipment
Mated Stacking Height: 5mm and 10mm
Mounting: Surface mount technology (SMT)
REACH: Unaffected
ECCN: EAR99
