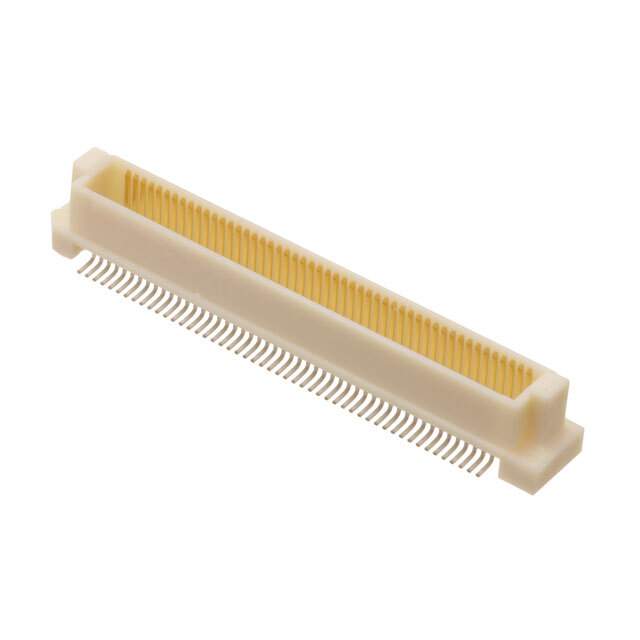

FX8C-100P-SV1(71) Real Image
Same model may have multiple batches, images only for reference.

FX8C-100P-SV1(71)

Part No FX8C-100P-SV1(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 100POS SMD GOLD / 100 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX8C
Package Tray
Connector Type Header, Outer Shroud Contacts
Number of Positions 100
Pitch 0.024" (0.60mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 6mm, 11mm
Height Above Board 0.214" (5.45mm)
Base Product Number FX8
Standard Package 108
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349957-FX8C-100P-SV1(71)
Ultra Librarian 3D Model Ultra Librarian FX8C-100P-SV1(71) CAD Model

Description

The Hirose Electric Co Ltd FunctionMax™ FX8C series is a board to board rectangular connector used in mezzanine applications. It is manufactured by Hirose Electric Co Ltd.

  • Series: FunctionMax™ FX8C
  • Type: Board to board rectangular connector
  • Application: Mezzanine
  • Contact Finish: Gold
  • Pitch: 0.024" (0.60mm)
  • Positions: 100
  • Rows: 2
  • Height above Board: 0.214" (5.45mm)
  • Mounting: Surface mounted
  • Feature: Board guide
  • Packaging: Tray
  • Operating Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
