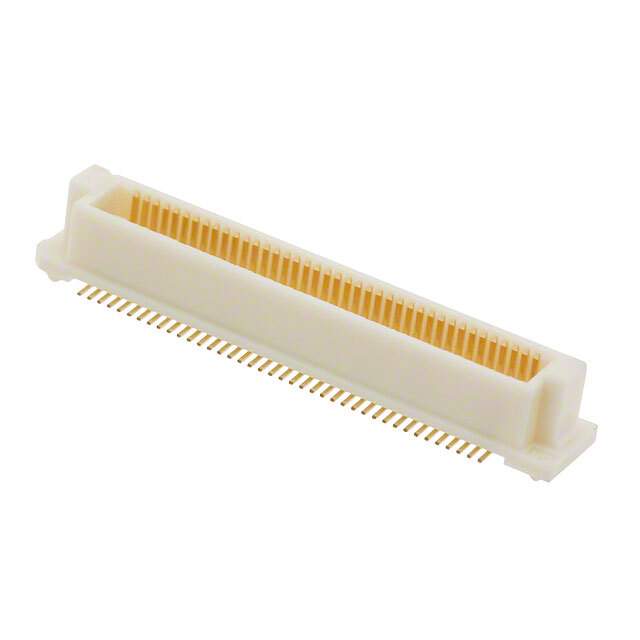

Same model may have multiple batches, images only for reference.

FX8C-80P-SV(21)

Get a Quote

Part No	FX8C-80P-SV(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER 80POS .6MM GOLD SMD / Conn Board to Board HDR 80 POS 0.6mm Solder ST SMD Tube
Datasheet	FX8C-80P-SV(21) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Series	FunctionMax FX8C
Packaging	Tube
Part Status	Obsolete(EOL)
Connector Type	Header, Outer Shroud Contacts
Number of Positions	80
Pitch	0.023" (0.60mm)
Number of Rows	2
Mounting	SMD
Features	Board Guide
Contact Finish	Gold
Mated Stacking Heights	5mm, 10mm
Height Above Board	0.175" (4.45mm)
Win Source Part Number	774840-FX8C-80P-SV(21)
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	17
Family Name	FX8C
Introduction Date	July 29, 2008
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian FX8C-80P-SV(21) CAD Model

Alternative Products

Description

The FX8C-80P-SV(21) is a FunctionMax FX8C series header connector from Hirose Electric Co Ltd.

Positions: 80
Pitch: 0.023" (0.60mm)
Mounting Type: SMD
Board Guide: Yes
Package: Tube
Height Above Board: 0.175" (4.45mm)
Contact Finish: Gold
Series: FX8C
Popularity: 48%
Supply and Demand Status: Limited
Quantity Per Package: 17
