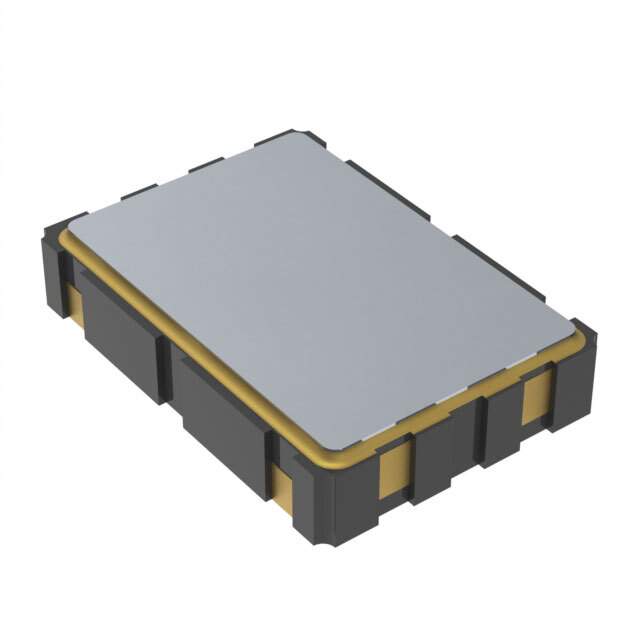

510CCA25M0000AAG Real Image
Same model may have multiple batches, images only for reference.

510CCA25M0000AAG

Part No 510CCA25M0000AAG
Manufacturer Skyworks Solutions Inc.
Catalog Oscillators
Description XTAL OSC XO 25.0000MHZ CMOS SMD / 25 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
510CCA25M0000AAG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Skyworks Solutions Inc.
Series Si510
Package Strip
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±20ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 26mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 18mA
Base Product Number 510CCA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 336-5450
Standard Package 200
Win Source Part Number 1017485-510CCA25M0000AAG
Ultra Librarian 3D Model Ultra Librarian 510CCA25M0000AAG CAD Model

Description

The Skyworks Solutions Inc. Si510 is a 25 MHz XO (Standard) crystal oscillator with a CMOS output and a frequency stability of ±20ppm.

  • Series: Si510
  • Frequency: 25 MHz
  • Output: CMOS
  • Frequency Stability: ±20ppm
  • Current Supply: 26mA
  • Disable Current Supply: 18mA
  • Mounting: SMD (SMT)
  • Package: Strip
  • Height: 0.071" (1.80mm)
  • Dimensions: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Operating Temperature Range: -40°C to 85°C
