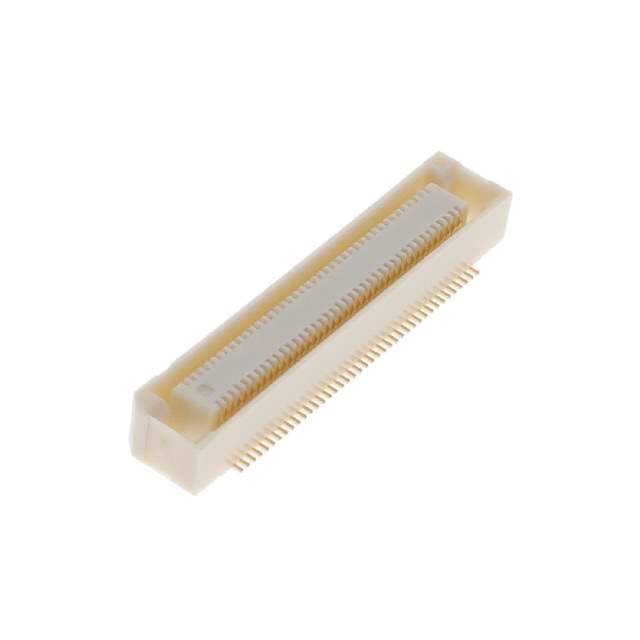

FX8C-80S-SV(92) Real Image
Same model may have multiple batches, images only for reference.

FX8C-80S-SV(92)

Part No FX8C-80S-SV(92)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 80POS SMD GOLD / 80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Connector Type Receptacle, Center Strip Contacts
Number of Positions 80
Pitch 0.024" (0.60mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 5mm, 6mm, 7mm, 9mm, 11mm
Height Above Board 0.156" (3.96mm)
Base Product Number FX8
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 578-0803-8-92,FX8C-80S-SV(92)-ND,H125758DKR,H125758TR,H125758CT
Standard Package 1,000
Win Source Part Number 1332879-FX8C-80S-SV(92)
Ultra Librarian 3D Model Ultra Librarian FX8C-80S-SV(92) CAD Model

Description

The Hirose Electric Co Ltd FX8 series is a rectangular connector that is designed for use with 80 center strip contacts.

  • Contacts: 80 Center Strip
  • Connector Type: Receptacle
  • Pitch: 0.024" (0.60mm)
  • Mounting Type: Surface Mount
  • Height Above Board: 0.156" (3.96mm)
  • HTSUS Code: 8536.69.4040
  • RoHS Compliant: Yes
  • Category: Arrays, Edge Type, Mezzanine (Board to Board)
  • Package: Reel
  • Standard Package: 1,000
