Same model may have multiple batches, images only for reference.

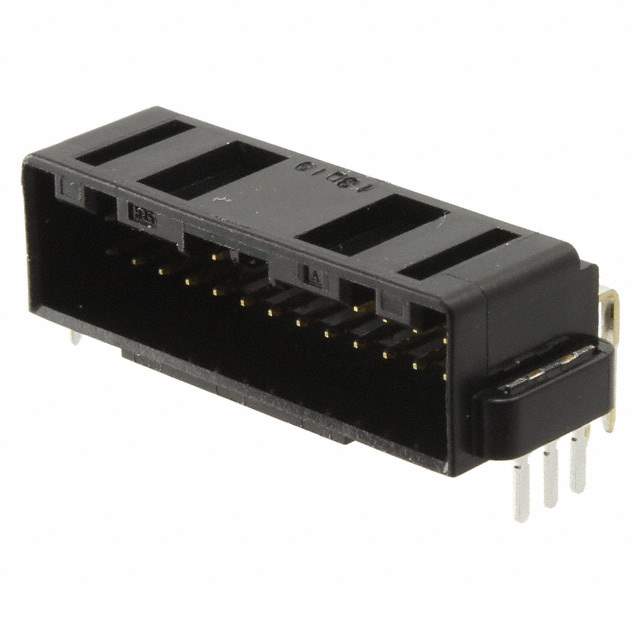

GT8E-24DP-DS Real Image
Same model may have multiple batches, images only for reference.

GT8E-24DP-DS

Part No GT8E-24DP-DS
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER R/A 24POS 2MM / Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm)
Datasheet
GT8E-24DP-DS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.387" (9.83mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Board Guide
Insulation Color Black
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 758-0053-1-00,GT8E-24DP-DS-ND,H122081
Standard Package 72
Win Source Part Number 1333030-GT8E-24DP-DS
Ultra Librarian 3D Model Ultra Librarian GT8E-24DP-DS CAD Model

Description

The Hirose Electric Co Ltd GT8E-24DP-DS is a rectangular connector designed for use in header male pins.

  • Positions: 24
  • Feature: Board Guide
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: Two
  • Termination: Soldering
  • Fastening Type: Latch Lock
  • Contact Material: Brass
  • Voltage Rating: No Voltage Rating
  • Pitch-Mating: 0.079 inches (2.00mm)
  • Shrouding: Shrouded - 4 Wall
  • Row Spacing-Mating: 0.079 inches (2.00mm)
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Mounting: Through Hole, Right Angle
  • Contact Finish-Mating: Tin
  • Insulation Color: Black
  • Compliance: RoHS
  • ECCN: EAR99
