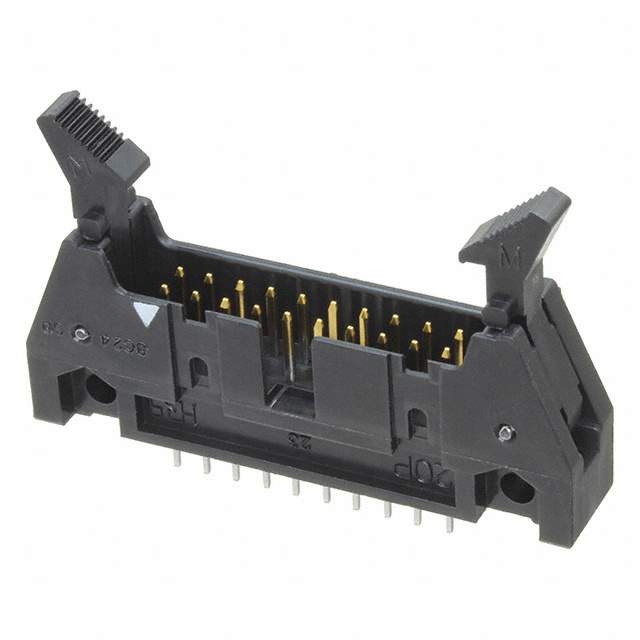

HIF3BA-20PA-2.54DSA(71) Real Image
Same model may have multiple batches, images only for reference.

HIF3BA-20PA-2.54DSA(71)

Part No HIF3BA-20PA-2.54DSA(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 20POS 2.54MM  /  Connector Header Through Hole 20 position 0.100" (2.54mm)
Datasheet
HIF3BA-20PA-2.54DSA(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series HIF3B
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.657" (16.70mm)
Insulation Height 0.701" (17.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 200V
Contact Finish Thickness - Post 78.7µin (2.00µm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 610-0114-6-71,H125738,HIF3BA-20PA-2.54DSA(71)-ND
Standard Package 140
Win Source Part Number 1180069-HIF3BA-20PA-2.54DSA(71)
Ultra Librarian 3D Model Ultra Librarian HIF3BA-20PA-2.54DSA(71) CAD Model

Description

The HIF3BA-20PA-2.54DSA(71) is a rectangular connector - header, male pin electronic component from the Connectors, Interconnects category.

  • Manufacturer: Hirose Electric Co Ltd
  • Series: HIF3B
  • Product Name: HIF3BA-20PA-2.54DSA(71)
  • Category: Connectors, Interconnects
  • Connector Type: Header
  • Positions: 20
  • Contact Type: Male Pin
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 8.00µin (0.203µm)
  • Mounting Type: Through Hole
  • Temperature Range: -55°C to 85°C
