Same model may have multiple batches, images only for reference.

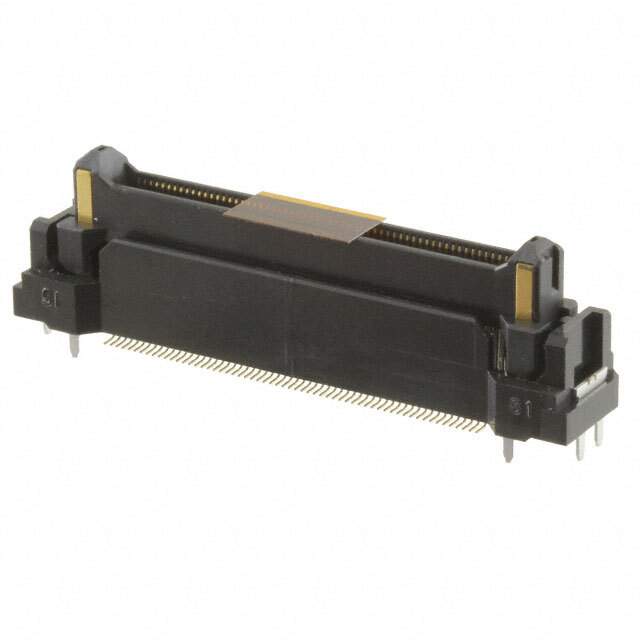

FX23-120P-0.5SV15 Real Image
Same model may have multiple batches, images only for reference.

FX23-120P-0.5SV15

Part No FX23-120P-0.5SV15
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 120POS SMD GOLD / 124 (120 + 4 Power) Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
FX23-120P-0.5SV15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX23
Package Tray
Connector Type Header, Outer Shroud Contacts
Number of Positions 124 (120 + 4 Power)
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 15mm, 20mm
Height Above Board 0.507" (12.88mm)
Base Product Number FX23
Standard Package 60
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351730-FX23-120P-0.5SV15
Ultra Librarian 3D Model Ultra Librarian FX23-120P-0.5SV15 CAD Model

Description

The FunctionMax™ FX23 series is a range of rectangular connectors designed for board-to-board mezzanine applications.

  • Pitch: 0.020" (0.50mm)
  • Type: header with outer shroud contacts
  • Rows: two rows with 124 positions (120 + 4 power)
  • Height Above Board: 0.507" (12.88mm)
  • Mounting: surface mountable
  • Contact Finish: gold
  • Package: tray package
  • Mated Stacking Heights: 15mm and 20mm
  • Features: board guide
