Same model may have multiple batches, images only for reference.

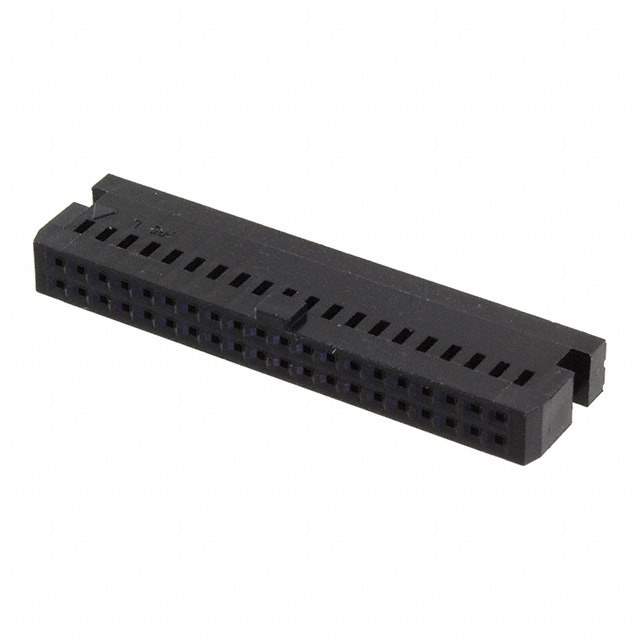

HIF3BA-40D-2.54C Real Image
Same model may have multiple batches, images only for reference.

HIF3BA-40D-2.54C

Part No HIF3BA-40D-2.54C
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT HSG 40POS 2.54MM / 40 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Product Status Obsolete
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 40
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Color Black
Features Polarizing Key
Note Contacts Not Included
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number -HIF3BA-40D-2.54C,*HIF3BA-40D-2.54C-ND,H123739,HIF3BA-40D-2.54C-ND,610-1047-6-00,*HIF3BA-40D-2.54C
Standard Package 50
Win Source Part Number 1332814-HIF3BA-40D-2.54C
Ultra Librarian 3D Model Ultra Librarian HIF3BA-40D-2.54C CAD Model

Description

The Hirose Electric Co Ltd HIF3BA-40D-2.54C is a two-row, 40-position rectangular connector receptacle housing with a 0.100" (2.54mm) pitch.

  • Manufacturer: Hirose Electric Co Ltd
  • Positions: 40
  • Rows: Two
  • Pitch: 0.100" (2.54mm)
  • Mounting: Free hanging (in-line)
  • Feature: Polarizing key
  • Contact Type: Female socket
  • Termination: Crimp
  • Contacts Included: No
  • RoHS Compliant: Yes
  • Standard Package: 50
