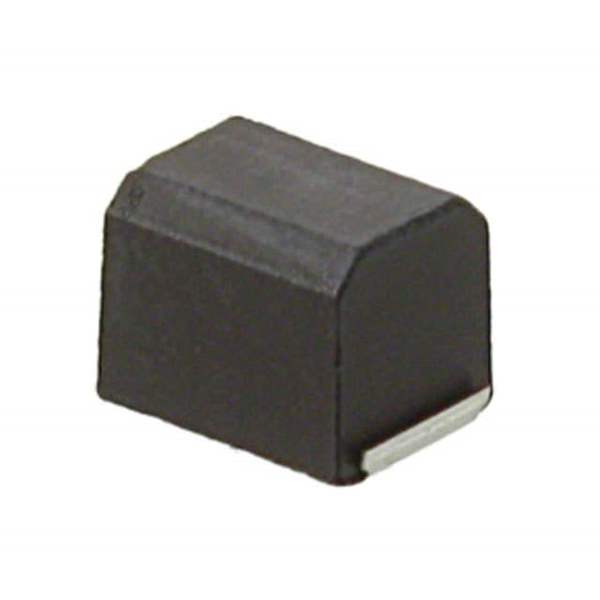

NLFC453232T-2R2M-PF TDK Corporation
Same model may have multiple batches, images only for reference.

NLFC453232T-2R2M-PF

Part No NLFC453232T-2R2M-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 600MA 70 MOHM
Datasheet
NLFC453232T-2R2M-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 2.2μH
Tolerance ±20%
Current Rating 600mA
DC Resistance (DCR) 70 mOhm
Q @ Freq 10 @ 7.96MHz
Frequency - Self Resonant 80MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 7.96MHz
Mounting SMD (SMT)
Case / Package 1812
Height - Seated (Max) 0.134" (3.40mm)
Win Source Part Number 025556-NLFC453232T-2R2M-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NLFC453232T-2R2M-PF CAD Model

Description

The TDK Corporation NLFC453232T-2R2M-PF is a wirewound inductor with a medium popularity.

  • Current Rating: 600mA
  • Inductance: 2.2μH
  • Height: 0.134 inches (3.40mm)
  • Mounting: Surface Mounted
  • Tolerance: ±20%
  • Q @ Freq: 10 @ 7.96MHz
  • Frequency Self-Resonant: 80MHz
  • DC Resistance (DCR): 70 mOhm
  • Status: Active
  • Temperature Range: -40°C to 105°C
  • Package: 1812
