HIF3FC-10PA-2.54DSA(71) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

HIF3FC-10PA-2.54DSA(71)

Part No HIF3FC-10PA-2.54DSA(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors

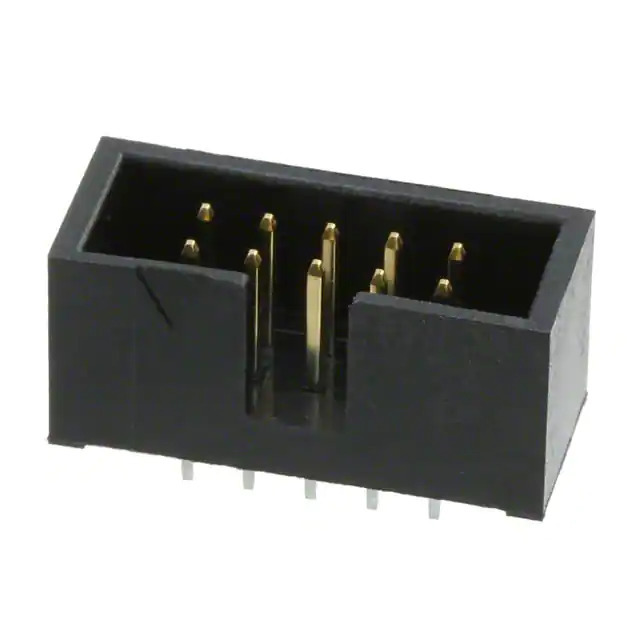

Description CONN HEADER VERT 10POS 2.54MM
Datasheet
HIF3FC-10PA-2.54DSA(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series HIF3FC
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length -
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features -
Temperature Range - Operating -55°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 200V
Mated Stacking Heights -
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications -
Base Product Number HIF3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1366261-HIF3FC-10PA-2.54DSA(71)
Ultra Librarian 3D Model Ultra Librarian HIF3FC-10PA-2.54DSA(71) CAD Model

Description

The HIF3FC-10PA-2.54DSA(71) is a rectangular connector header from Hirose Electric Co Ltd.

  • Series: HIF3FC
  • Mounting Type: Through Hole
  • Connector Type: Header
  • Gender: Male
  • Contact Finish: Gold
  • Number of Positions: 10
  • Number of Rows: 2
  • Pitch: 0.100" (2.54mm)
  • Row Spacing: 0.100" (2.54mm)
  • Shrouding: Shrouded with 4 Walls
  • Termination Type: Solder
  • Fastening Type: Push-Pull
  • Current Rating: 1A
  • Contact Length (Mating): 0.236" (6.00mm)
  • Contact Length (Post): 0.110" (2.79mm)
  • Insulation Height: 0.350" (8.89mm)
  • Contact Shape: Square
  • Contact Finish Thickness (Mating): 8.00µin (0.203µm)
  • Contact Finish Thickness (Post): 78.7µin (2.00µm)
  • MSL: 1 (Unlimited Shelf Life)
  • HTSUS Code: 8536.69.4040
  • ECCN: EAR99
