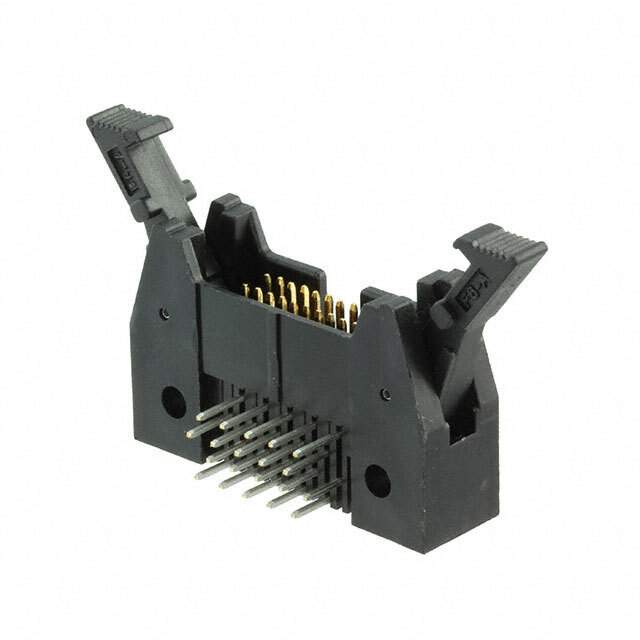

HIF6-20PA-1.27DS(71) Real Image
Same model may have multiple batches, images only for reference.

HIF6-20PA-1.27DS(71)

Part No HIF6-20PA-1.27DS(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER R/A 20POS 1.27MM / Connector Header Through Hole, Right Angle 20 position 0.050" (1.27mm)
Datasheet
HIF6-20PA-1.27DS(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series HIF6
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.217" (5.50mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 0.5A
Voltage Rating 300V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number HIF6
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names HIF6-20PA-1.27DS(71)-ND,H123927,-HIF6-20PA-1.27DS(71),630-0051-2-71,*HIF6-20PA-1.27DS(71)-ND,*HIF6-20PA-1.27DS(71)
Standard Package 50
Win Source Part Number 1062870-HIF6-20PA-1.27DS(71)
Ultra Librarian 3D Model Ultra Librarian HIF6-20PA-1.27DS(71) CAD Model

Description

The 1062870-HIF6-20PA-1.27DS(71) is a rectangular header connector designed for board-to-cable/wire connections.

  • Positions: 20
  • Pitch: 0.050 inches (1.27mm)
  • Features: Keying slot and mounting flange
  • Connector Type: Header with male pin contacts
  • Rows: Two
  • Termination: Solder
  • Fastening Type: Latch lock/eject hooks
  • Contact Material: Brass
  • Voltage Rating: 300V
  • Insulation Material: Polybutylene terephthalate (PBT)
  • Insulation Color: Black
  • ECCN: EAR99
  • Standard Package: 50
