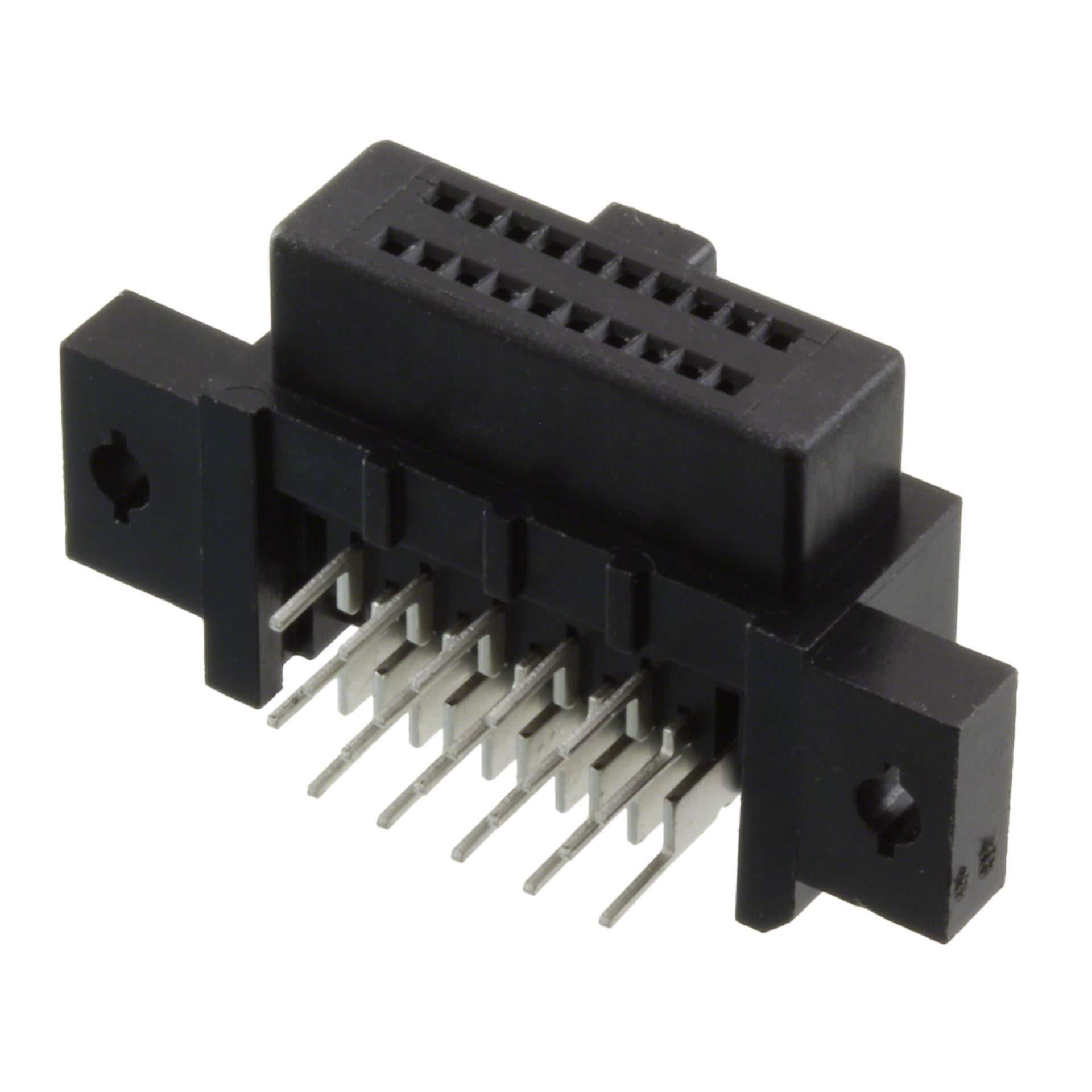

HIF6B-20DA-1.27DS(71) Real Image
Same model may have multiple batches, images only for reference.

HIF6B-20DA-1.27DS(71)

Part No HIF6B-20DA-1.27DS(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 20P 0.05 GOLD PCB R/A / 20 Position Receptacle Connector 0.050" (1.27mm) Through Hole, Right Angle Gold
Datasheet
HIF6B-20DA-1.27DS(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Hirose Electric Co Ltd
Series HIF6
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.118" (3.00mm)
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Features Mounting Flange, Polarizing Key
Current Rating (Amps) 0.5A
Voltage Rating 125VAC
Applications General Purpose
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Contact Material Copper Alloy
Base Product Number HIF6
Standard Package 75
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339860-HIF6B-20DA-1.27DS(71)
Ultra Librarian 3D Model Ultra Librarian HIF6B-20DA-1.27DS(71) CAD Model

Description

The Hirose Electric Co Ltd HIF6B-20DA-1.27DS(71) is a rectangular connector designed for board to board or cable connections.

  • Connector Type: Receptacle
  • Contact Gender: 20 Female Socket
  • Polarization: Polarized
  • Mounting Feature: Mounting Flange
  • Fastening Type: Push-Pull
  • Contact Material: Copper Alloy
  • Contact Finish Mating: Gold
  • Voltage Rating: 125VAC
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 85°C
  • Application: General Purpose
  • Package: Tray
  • Mounting Type: Through Hole
  • Orientation: Right Angle
  • Row Spacing: 0.100" (2.54mm)
  • Contact Length: 0.118" (3.00mm)
  • Insulation Color: Black
  • Insulation Height: 0.335" (8.51mm)
