Same model may have multiple batches, images only for reference.

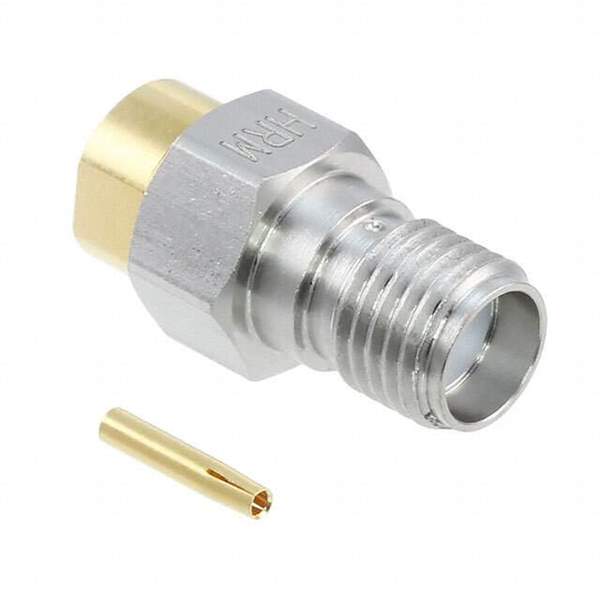

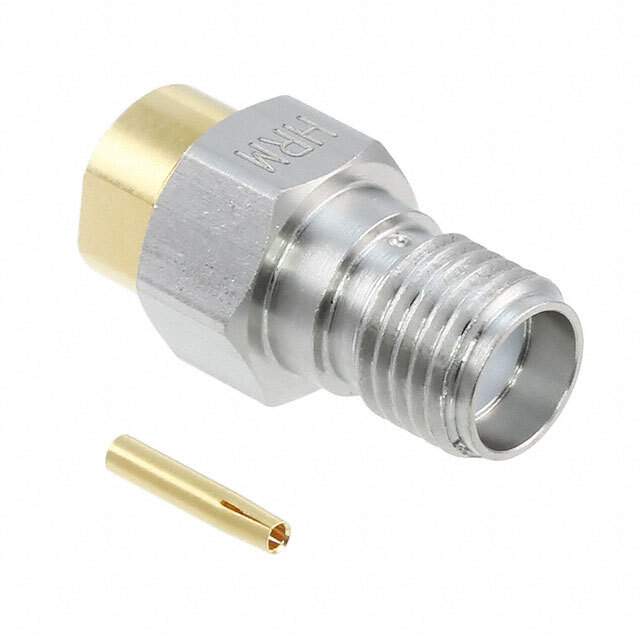

HRM-100-2S(09) Real Image
Same model may have multiple batches, images only for reference.

HRM-100-2S(09)

Part No HRM-100-2S(09)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK STR 50OHM SOLDER / SMA Connector Jack, Female Socket 50Ohm Free Hanging (In-Line) Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Hirose Electric Co Ltd
Series HRM
Package Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-405 (.085" Semi Rigid)
Fastening Type Threaded
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Stainless Steel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 125°C
Mating Cycles 1000
Insertion Loss 0.1dB
Base Product Number HRM
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names *HRM-100-2S(09)-ND,323-0144-9-09,-HRM-100-2S(09),*HRM-100-2S(09),H122697
Standard Package 20
Win Source Part Number 1174120-HRM-100-2S(09)
Ultra Librarian 3D Model Ultra Librarian HRM-100-2S(09) CAD Model

Description

The Hirose Electric Co Ltd HRM-100-2S(09) is a female socket jack coaxial connector.

  • Frequency Max: 12.4 GHz
  • Insertion Loss: 0.1dB
  • Win Source Part Number: 1174120-HRM-100-2S(09)
  • Category: Connectors, Interconnects
  • Impedance: 50Ohm
  • Mating Cycles: 1000
  • Temperature Range: -55°C to 125°C
  • Mounting: Free hanging (in-line)
