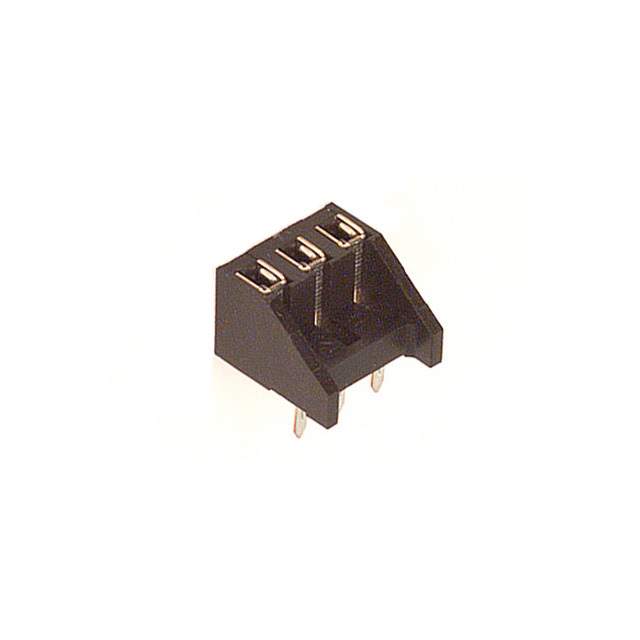

MDF7-3S-2.54DSA

Name: MDF7-3S-2.54DSA
Brand: Hirose Electric Co Ltd
SKU: 638847
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MDF7-3S-2.54DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	2.54mm Pitch Bottom Entry Type Connector \| CONN RCPT 3POS 0.1 TIN PCB
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Bulk
Status	Obsolete
Connector Type	Receptacle, Bottom Entry
Contact Type	Female Socket
Style	Board to Board
Number of Positions	3
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4μin (1.00μm)
Insulation Color	Black
Insulation Height	0.197"
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	3A
Voltage Rating	250VAC
Insulation Material	Polyamide (PA), Nylon
Contact Shape	Square
Contact Material	Phosphor Bronze
Manufacturer Pack Quantity	100
MSL Level	1 (Unlimited)
Win Source Part Number	1221535-MDF7-3S-2.54DSA
Manufacturer Homepage	www.hirose-connectors.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian MDF7-3S-2.54DSA CAD Model

Alternative Products

Description

The MDF7-3S-2.54DSA is a board to board type of connector manufactured by Hirose Electric Co Ltd. It is a receptacle, bottom entry connector with female socket contact type and has a pitch of 0.100" (2.54mm).

The connector has a current rating of: 3A
and can operate @ a temperature range of: -35°C to 85°C.
It is supplied in a: bulk package
and is: obsolete.
