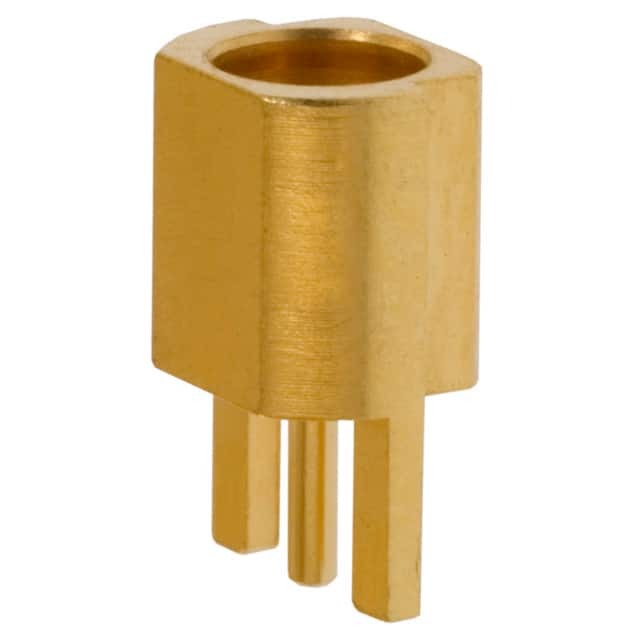

MMCX-LR-SMT
Same model may have multiple batches, images only for reference.

MMCX-LR-SMT

Part No MMCX-LR-SMT
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN MMCX RCPT STR 50OHM EDGEMNT
Datasheet
MMCX-LR-SMT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Hirose Electric Co Ltd
Package Bulk
Product Status Obsolete
Connector Style MMCX
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Board Edge, Cutout; Surface Mount
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 85°C
Mating Cycles 500
Base Product Number MMCX-LR
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 847250-MMCX-LR-SMT
Ultra Librarian 3D Model Ultra Librarian MMCX-LR-SMT CAD Model

Description

The MMCX-LR-SMT is a coaxial connector assembly from Hirose Electric Co Ltd.

  • Product Name: MMCX-LR-SMT
  • Connector Type: Receptacle with Female Socket
  • Fastening Type: Snap-On
  • Contact Termination: Solder
  • Connector Style: MMCX
  • Maximum Frequency: 6 GHz
  • Impedance: 50Ohm
  • Package: Bulk
  • Standard Package Quantity: 50 pcs
  • Housing Color: Gold
  • Body Finish: Gold
  • Mounting Type: Board Edge/Cutout, Surface Mount
  • Temperature Range: -55°C to 85°C
  • Status: Active
  • ECCN: EAR99
  • Manufacturer: Hirose Electric Co Ltd
