PCN10-20P-2.54DS(72) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

PCN10-20P-2.54DS(72)

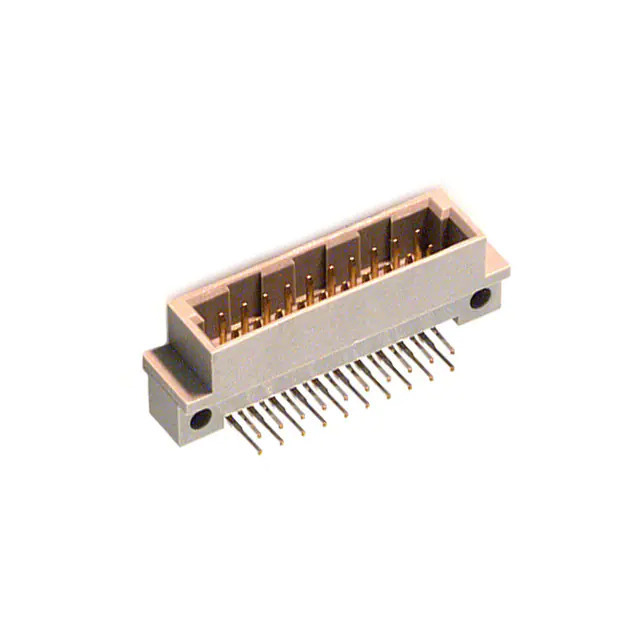

Part No PCN10-20P-2.54DS(72)
Manufacturer Hirose Electric Co Ltd
Catalog Backplane Connectors
Description CONN DIN HDR 20POS PCB RA GOLD / 20 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
Datasheet
PCN10-20P-2.54DS(72) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Hirose Electric Co Ltd
Series PCN10
Package Tray
Product Status Active
Connector Type Header, Male Pins
Number of Positions 20
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Style B
Mounting Type Through Hole, Right Angle
Termination Solder
Features -
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Temperature Range - Operating -55°C ~ 85°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT)
Base Product Number PCN10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364584-PCN10-20P-2.54DS(72)
Ultra Librarian 3D Model Ultra Librarian PCN10-20P-2.54DS(72) CAD Model

Description

The Hirose Electric Co Ltd PCN10-20P-2.54DS(72) is a DIN 41612 backplane connector designed for various electronic applications.

  • Temperature Range: -55°C to 85°C
  • Series: PCN10
  • Connector Type: Header
  • Gender: Male Pins
  • Number of Positions: 20
  • Number of Rows: 2
  • Termination: Solder
  • Material Flammability Rating: UL94 V-0
  • Product Status: Active
  • Mounting Type: Through Hole, Right Angle
