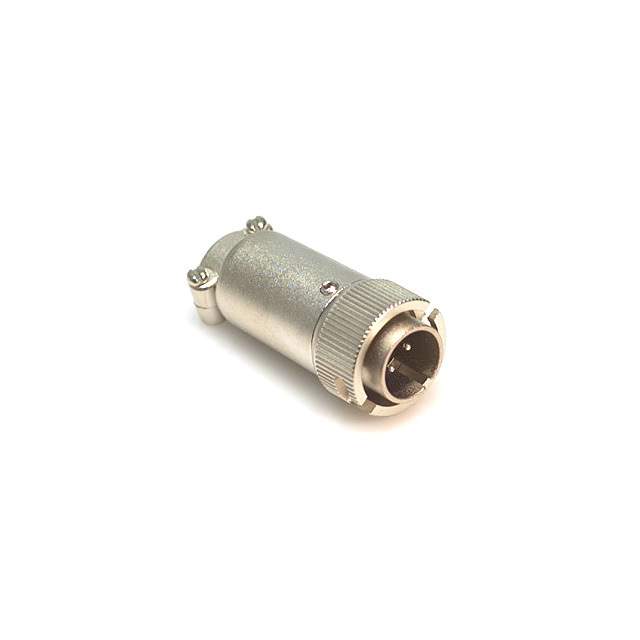

RM12BPE-2PH(71) Real Image
Same model may have multiple batches, images only for reference.

RM12BPE-2PH(71)

Part No RM12BPE-2PH(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN PLUG MALE 2P SILV SLDR CUP / 2 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
RM12BPE-2PH(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series RM
Package Bulk
Product Status Obsolete
Connector Type Plug, Male Pins
Number of Positions 2
Shell Size - Insert 12
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Features Backshell, Cable Clamp, Coupling Nut
Current Rating (Amps) 5A
Voltage Rating 600VAC, 840VDC
Cable Opening 0.197" ~ 0.315" (5.00mm ~ 8.00mm)
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Zinc Alloy, Nickel
Contact Material Copper Alloy
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Insert Material Diallyl Phthalate (DAP)
Base Product Number RM12BPE
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1341080-RM12BPE-2PH(71)
Ultra Librarian 3D Model Ultra Librarian RM12BPE-2PH(71) CAD Model

Description

The RM12BPE-2PH(71) is a circular connector assembly from Hirose Electric Co Ltd.

  • Manufacturer: Hirose Electric Co Ltd
  • Positions: 2
  • Contact Gender: Male Pins
  • Voltage Rating: 600VAC, 840VDC
  • Current Rating: 5A
  • Fastening Type: Bayonet Lock
  • Termination: Solder Cup
  • Temperature Range: -25°C to 85°C
  • RoHS Compliant: Yes
  • Series: RM
  • Shell Material: Zinc Alloy
  • Shell Finish: Nickel
  • Features: Backshell, Cable Clamp, Coupling Nut
