Same model may have multiple batches, images only for reference.

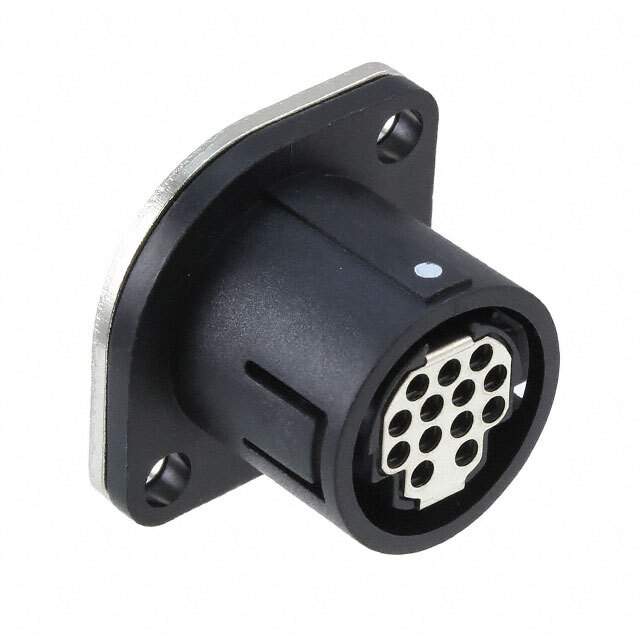

RP13A-12R-13SC(71) Real Image
Same model may have multiple batches, images only for reference.

RP13A-12R-13SC(71)

Part No RP13A-12R-13SC(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN RCPT HSG FMALE 13POS PNL MT / 13 Position Circular Connector Receptacle Housing Panel Mount Electrostatic Shield
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Connector Type Receptacle Housing
Type For Female Sockets
Number of Positions 13
Shell Size - Insert 12
Contact Type Crimp
Contact Size 1.2mm (11), 1.6mm (2)
Mounting Panel Mount
Mounting Feature Flange
Fastening Type Push-Pull
Orientation Keyed
Shell Material Polybutylene Terephthalate (PBT)
Housing Color Black
Material Flammability Rating UL94 V-0
Features Electrostatic Shield
Shielding Shielded
Note Contacts Not Included
Insert Material Polybutylene Terephthalate (PBT)
Contact Shape Circular
Temperature Range - Operating -10°C ~ 60°C
Base Product Number RP13
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number H124431,113-4002-2-71,RP13A-12R-13SC(71)-ND,*RP13A-12R-13SC(71),-RP13A-12R-13SC(71),*RP13A-12R-13SC(71)-ND
Standard Package 100
Win Source Part Number 1334442-RP13A-12R-13SC(71)
Ultra Librarian 3D Model Ultra Librarian RP13A-12R-13SC(71) CAD Model

Description

This connector is manufactured by Hirose Electric Co Ltd and has a Win Source Part Number of 1334442-RP13A-12R-13SC(71).

  • Win Source Part Number: 1334442-RP13A-12R-13SC(71)
  • Housing Type: Receptacle Housing
  • Connector Gender: For Female Sockets
  • Number of Positions: 13
  • Contact Type: Crimp
  • Fastening Type: Push-Pull
  • Contact Size: 1.2mm (11), 1.6mm (2)
  • Contacts Included: No
  • Shielding: Shielded with Electrostatic Shield
  • Material Flammability Rating: UL94 V-0
  • Orientation: Keyed
  • Housing Color: Black
  • Standard Package: 100
  • Mounting Type: Panel Mount
  • Shell Size-Insert: 12
  • Shell Material: Polybutylene Terephthalate (PBT)
  • Operating Temperature: -10°C ~ 60°C
