Same model may have multiple batches, images only for reference.

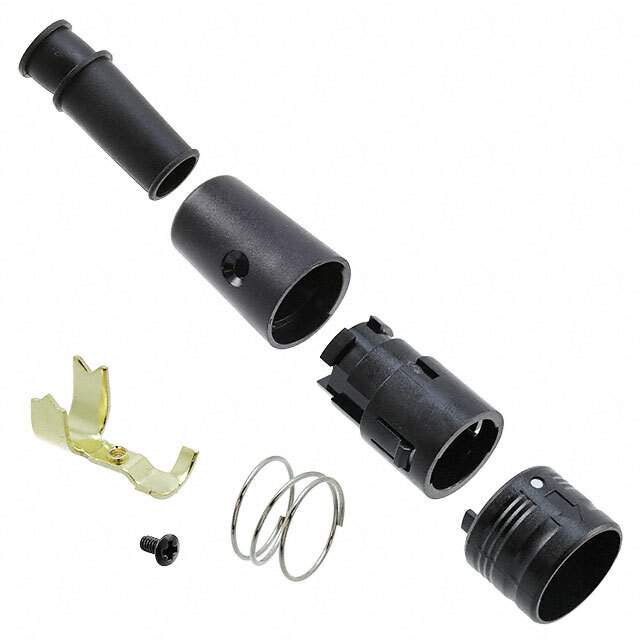

RP17-13PA-12PC(71) Real Image
Same model may have multiple batches, images only for reference.

RP17-13PA-12PC(71)

Part No RP17-13PA-12PC(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors
Description CONN PLG HSG MALE 12POS INLINE / 12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp
Datasheet
RP17-13PA-12PC(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr Hirose Electric Co Ltd
Series RP17
Package Bulk
Connector Type Plug Housing
Type For Male Pins
Number of Positions 12
Shell Size - Insert 13
Contact Type Crimp
Mounting Type Free Hanging (In-Line)
Fastening Type Push-Pull
Orientation Keyed
Shell Material Polycarbonate (PC)
Housing Color Black
Material Flammability Rating UL94 V-0
Features Backshell, Cable Clamp
Shielding Unshielded
Note Contacts Not Included
Includes 6 pcs - 1 Connector, 1 Backshell, 1 Clamp, 1 Screw, 1 Spring, 1 Strain Relief
Insert Material Polycarbonate (PC)
Temperature Range - Operating -10°C ~ 60°C
Base Product Number RP17
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names *RP17-13PA-12PC(71),*RP17-13PA-12PC(71)-ND,113-0512-7-71,RP17-13PA-12PC(71)-ND,-RP17-13PA-12PC(71),H124432
Standard Package 200
Win Source Part Number 1203544-RP17-13PA-12PC(71)
Ultra Librarian 3D Model Ultra Librarian RP17-13PA-12PC(71) CAD Model

Description

The Hirose Electric Co Ltd 1203544-RP17-13PA-12PC(71) plug housing is designed for male pins and features a backshell and cable clamp.

  • Series: RP17
  • Shell Size: 13 Insert
  • Pitch: -
  • Termination: Crimp
  • Orientation: Keyed
  • Shielding: Unshielded
  • Housing Material: Polycarbonate (PC)
  • Flammability Rating: UL94 V-0
  • Mounting: Free Hanging (In-Line)
  • Temperature Range: -10°C ~ 60°C
  • Packaging: Bulk, 6 pieces
  • Contacts: Not Included
