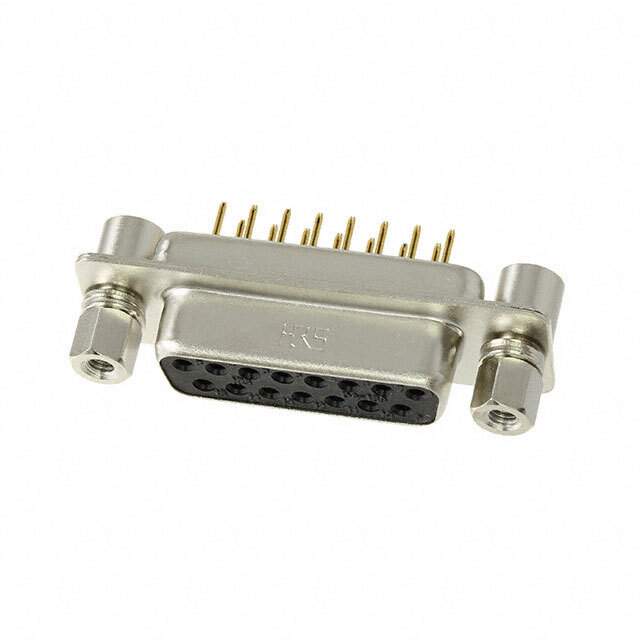

SDAB-15S-SL-LNK(55) Real Image
Same model may have multiple batches, images only for reference.

SDAB-15S-SL-LNK(55)

Part No SDAB-15S-SL-LNK(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series SD
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (M2.6)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Base Product Number SDAB
Other Names *SDAB-15S-SL-LNK(55),H122913,211-0821-7-55,-SDAB-15S-SL-LNK(55),*SDAB-15S-SL-LNK(55)
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294116-SDAB-15S-SL-LNK(55)
Ultra Librarian 3D Model Ultra Librarian SDAB-15S-SL-LNK(55) CAD Model

Description

The Hirose Electric Co Ltd 1294116-SDAB-15S-SL-LNK(55) is a 15-position D-sub connector with a black color.

  • Positions: 15
  • Color: Black
  • Type: Receptacle
  • Contact Type: Female Sockets, Signal
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Package: Tray
  • Standard Package: 40
  • Flange Feature: Mating Side, Female Screwlock (M2.6)
  • Materials: Steel and Nickel Plated
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Shell Size, Connector Layout: 2 (DA, A)
  • Mounting: Panel Mount and Through Hole
