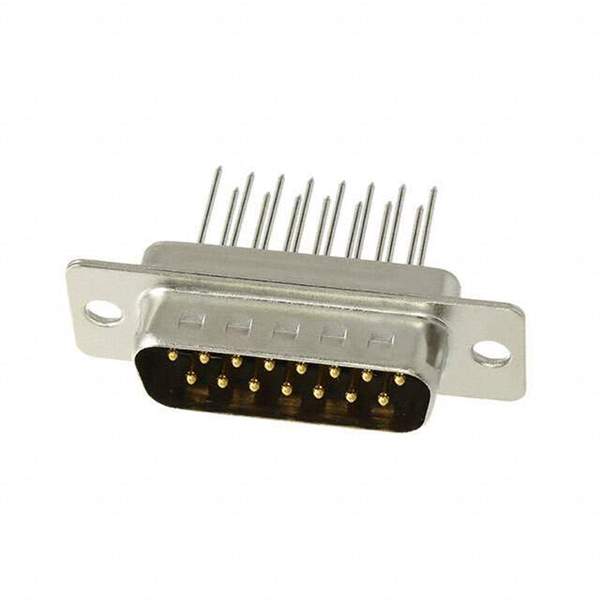

SDAG-15PF(55) Real Image
Same model may have multiple batches, images only for reference.

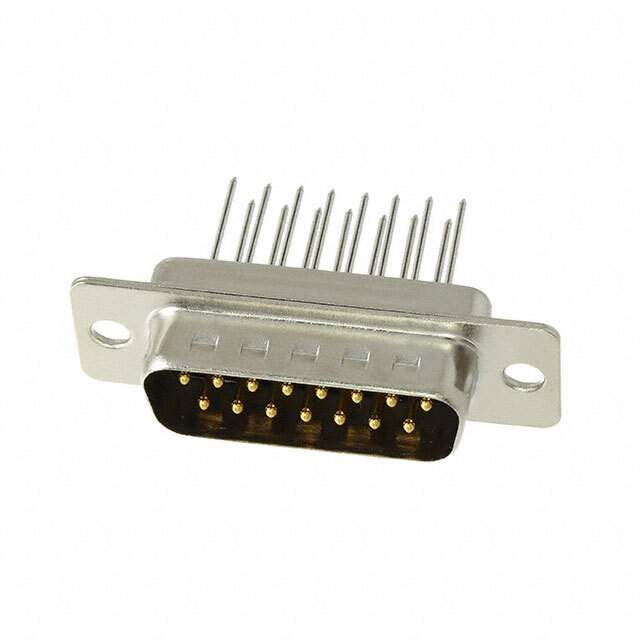

SDAG-15PF(55)

Part No SDAG-15PF(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series SD
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Grounding Indents
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Base Product Number SDAG
Other Names H122914,*SDAG-15PF(55),-SDAG-15PF(55),211-0772-3-55,*SDAG-15PF(55)
Standard Package 90
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294123-SDAG-15PF(55)
Ultra Librarian 3D Model Ultra Librarian SDAG-15PF(55) CAD Model

Description

The Hirose Electric Co Ltd SD series is a D-sub connector with 15 positions and black color.

  • Positions: 15
  • Color: Black
  • Connector Type: Plug, male pins
  • Contact Type: Signal
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Package: Tray
  • Standard Package: 90
  • Voltage Rating: 350V
  • Current Rating: 3A
  • Mounting Type: Panel mount and through hole
