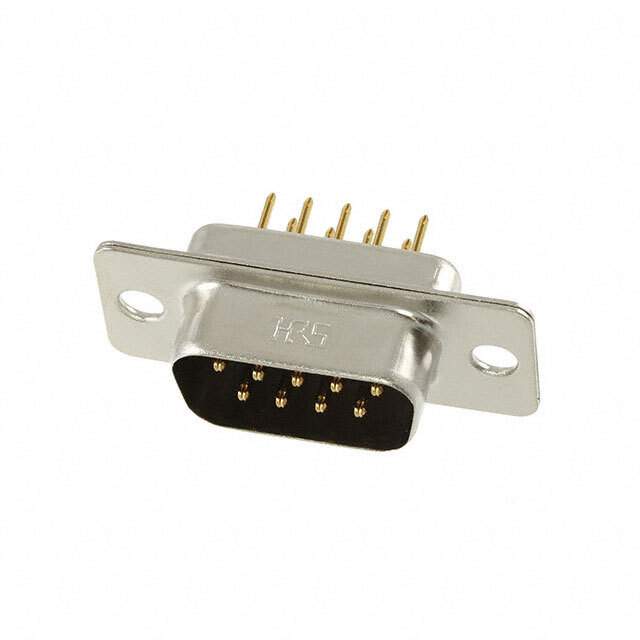

SDEB-9P(55) Real Image
Same model may have multiple batches, images only for reference.

SDEB-9P(55)

Part No SDEB-9P(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series SD
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Base Product Number SDEB
Other Names 211-0247-3-55,H122926,-SDEB-9P(55),*SDEB-9P(55),*SDEB-9P(55)
Standard Package 60
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294118-SDEB-9P(55)
Ultra Librarian 3D Model Ultra Librarian SDEB-9P(55) CAD Model

Description

The Hirose Electric Co Ltd SDEB-9P(55) is a D-sub connector with a plug, male pins connector type and a signal contact type.

  • Series: SD
  • Color: Black
  • Connector Type: D-sub
  • Type: Plug, Male Pins
  • Contact Type: Signal
  • Positions: 9
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Contact Material: Phosphor Bronze
  • Shell Material: Steel
  • Shell Finish: Nickel Plating
  • Shell Size: 1 (DE, E)
  • Mounting: Panel Mount, Through-Hole
  • Current Rating: 3A
  • ECCN: EAR99
