Same model may have multiple batches, images only for reference.

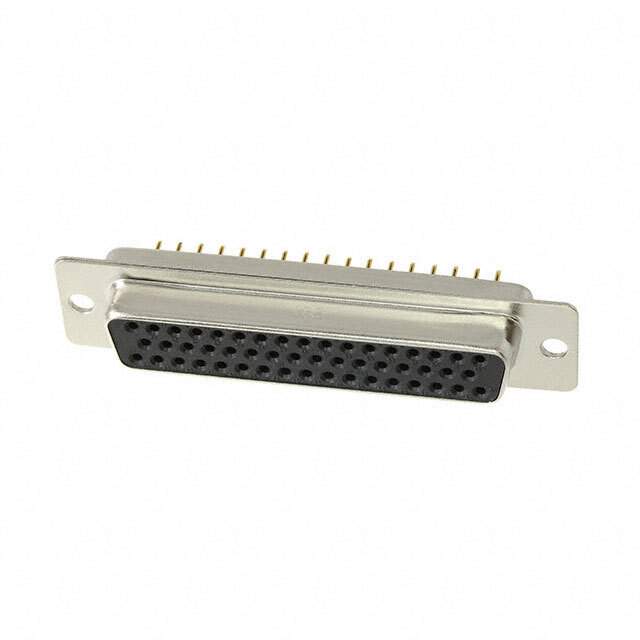

SDDB-50S(55) Real Image
Same model may have multiple batches, images only for reference.

SDDB-50S(55)

Part No SDDB-50S(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series SD
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 3
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 5 (DD, D)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Base Product Number SDDB
Other Names *SDDB-50S(55),H122924,-SDDB-50S(55),211-0396-3-55,*SDDB-50S(55)
Standard Package 48
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294113-SDDB-50S(55)
Ultra Librarian 3D Model Ultra Librarian SDDB-50S(55) CAD Model

Description

The SD series from Hirose Electric Co Ltd is a 50-position female socket receptacle connector.

  • Series: SD
  • Positions: 50
  • Pitch: -
  • Rows: 3
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Current Rating: 3A
  • Voltage Rating: 350V
  • Mounting: Through Hole
  • Package: Tray
  • Material Flammability Rating: UL94 V-0
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Shell Material: Steel, Nickel Plated
  • Mounting Type: Panel Mount
  • Temperature Range: -
