Same model may have multiple batches, images only for reference.

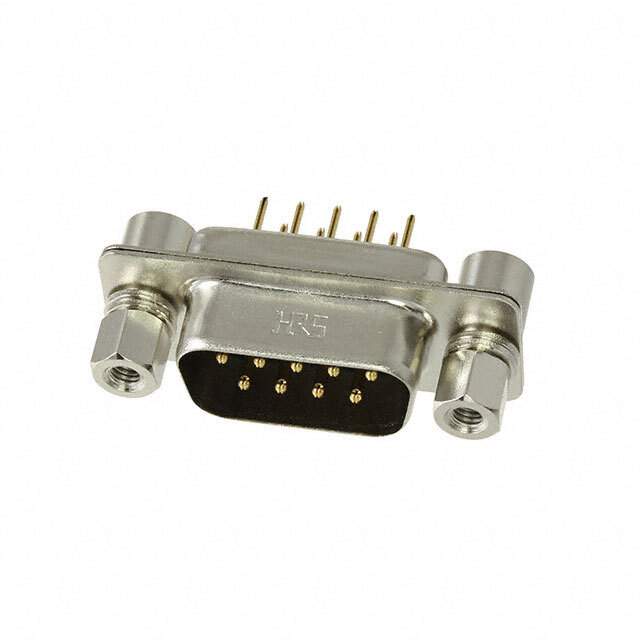

SDEB-9P-SL-LNK(55) Real Image
Same model may have multiple batches, images only for reference.

SDEB-9P-SL-LNK(55)

Part No SDEB-9P-SL-LNK(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series SD
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (M2.6)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Base Product Number SDEB
Other Names H122928,-SDEB-9P-SL-LNK(55),*SDEB-9P-SL-LNK(55),*SDEB-9P-SL-LNK(55),211-5208-9-55
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294119-SDEB-9P-SL-LNK(55)
Ultra Librarian 3D Model Ultra Librarian SDEB-9P-SL-LNK(55) CAD Model

Description

The 1294119-SDEB-9P-SL-LNK(55) is a 9-position connector plug from Hirose Electric Co Ltd.

  • Positions: 9
  • Category: D-sub
  • Configuration: Male Pin
  • Voltage Rating: 350V
  • Current Rating: 3A
  • Mounting: Panel Mount, Through-Hole
  • Flange Feature: Mating Side, Female Screwlock (M2.6)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
  • Alternatives: H122928,-SDEB-9P-SL-LNK(55), *SDEB-9P-SL-LNK(55), *SDEB-9P-SL-LNK(55), and 211-5208-9-55
