Same model may have multiple batches, images only for reference.

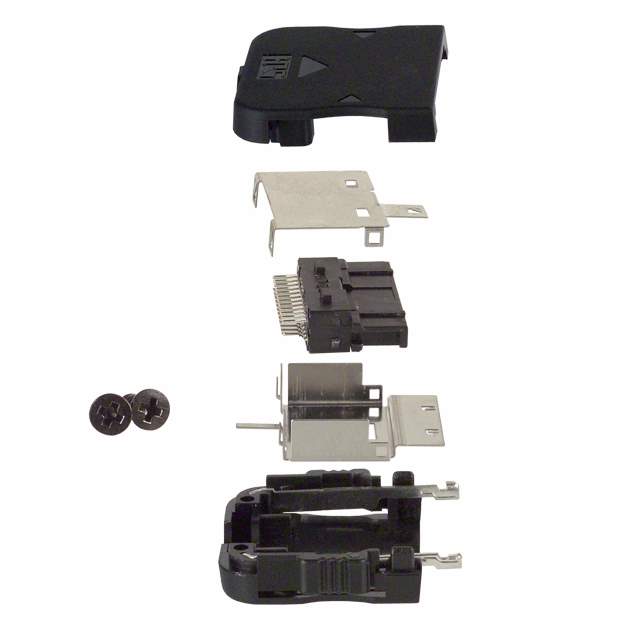

ST40X-24S-CV Real Image
Same model may have multiple batches, images only for reference.

ST40X-24S-CV

Part No ST40X-24S-CV
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Hirose Electric Co Ltd
Series ST
Package Tray
Product Status Obsolete
Connector Type Plug
Contact Type Non-Gender Specific
Number of Positions 24
Pitch 0.020" (0.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Cable Termination Solder
Wire Type Discrete
Features Shielded
Contact Finish Gold
Color Black
Other Names *ST40X-24S-CV,H1950
Standard Package 100
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1293388-ST40X-24S-CV
Ultra Librarian 3D Model Ultra Librarian ST40X-24S-CV CAD Model

Description

The Hirose Electric Co Ltd ST series connector is a shielded plug connector designed for free hanging and panel mount applications.

  • Contacts: 24 Non-Gender Specific
  • Pitch: 0.020 inches (0.50mm)
  • Contact Finish: Gold
  • Wire Type: Discrete
  • Cable Termination: Solder
  • Package: Tray
  • Series: ST
  • Status: Obsolete
  • RoHS: Non-Compliant
  • ECCN: EAR99
