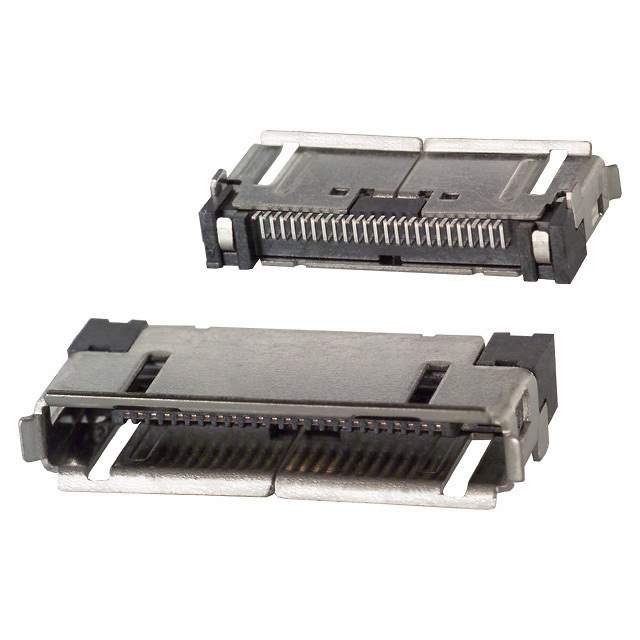

Same model may have multiple batches, images only for reference.

ST60-24P(50)

Name: ST60-24P(50)
Brand: Hirose Electric Co Ltd
SKU: 343511
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ST60-24P(50)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RECEPT 24POS SMD
Datasheet	ST60-24P(50) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Obsolete(EOL)
Connector Type	Receptacle
Contact Type	Non-Gendered
Style	Board to Cable/Wire
Number of Positions	24
Number of Positions Loaded	All
Pitch - Mating	0.020" (0.50mm)
Number of Rows	1
Mounting	Board Edge, Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Insulation Color	Black
Insulation Height	0.118" (3.00mm)
Temperature Range - Operating	-30°C to 80°C
Material Flammability Rating	UL94 V-0
Features	Board Guide, Shielded
Current Rating	0.5A
Voltage Rating	100VAC
Applications	General Purpose, Telecommunications
Insulation Material	Liquid Crystal Polymer (LCP)
Win Source Part Number	107921-ST60-24P(50)
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian ST60-24P(50) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd is a leading manufacturer of electronic components and the ST60-24P(50) is a connector that is commonly used in electronic circuits.

Manufacturer: Hirose Electric Co Ltd
Positions: 24
Shielded: Yes
Suitable for: General-purpose and telecommunications applications
Status: Obsolete (EOL)
Popularity: High
Voltage Rating: 100VAC
Current Rating: 0.5A
