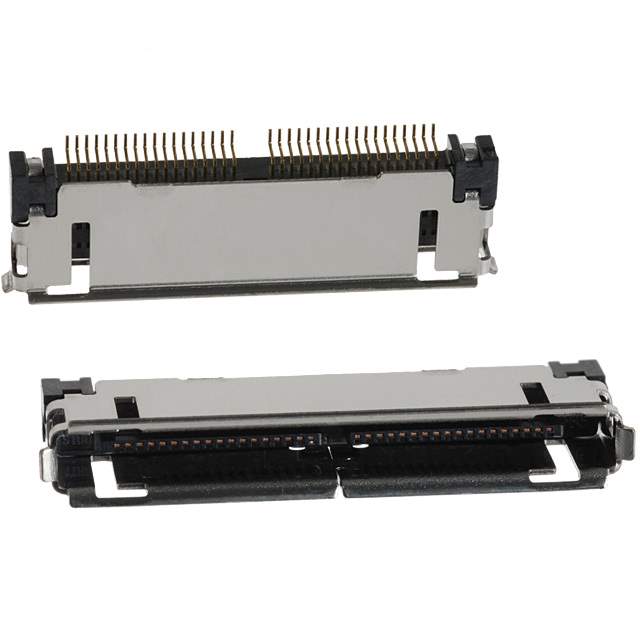

ST60-36P(30) Real Image
Same model may have multiple batches, images only for reference.

ST60-36P(30)

Part No ST60-36P(30)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Datasheet
ST60-36P(30) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Hirose Electric Co Ltd
Series ST
Package Tape & Reel
Connector Type Receptacle
Contact Type Non-Gendered
Style Board to Cable/Wire
Number of Positions 36
Number of Positions Loaded All
Pitch - Mating 0.020" (0.50mm)
Number of Rows 1
Mounting Type Board Edge, Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.118" (3.00mm)
Temperature Range - Operating -30°C ~ 80°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Board Guide, Shielded
Current Rating (Amps) 0.5A
Voltage Rating 100VAC
Applications General Purpose, Telecommunications
Insulation Material Liquid Crystal Polymer (LCP)
Contact Material Copper Alloy
Contact Finish Thickness - Post Flash
Base Product Number ST60
Other Names ST60-36P(30),241-0033-1-30,H126300DKR,H126300CT,H126300TR
Standard Package 1,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293095-ST60-36P(30)
Ultra Librarian 3D Model Ultra Librarian ST60-36P(30) CAD Model

Description

The ST series connector is a rectangular connector header that features 36 positions and a board guide and shielded features.

  • Connector Type: Receptacle
  • Contact Type: Non-Gendered
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Packaging: Tape and Reel
  • Mounting Type: Board Edge, Surface Mount, Right Angle
  • Pitch-Mating: 0.020 inches
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Insulation Color: Black
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Manufacturer: Hirose Electric Co Ltd
