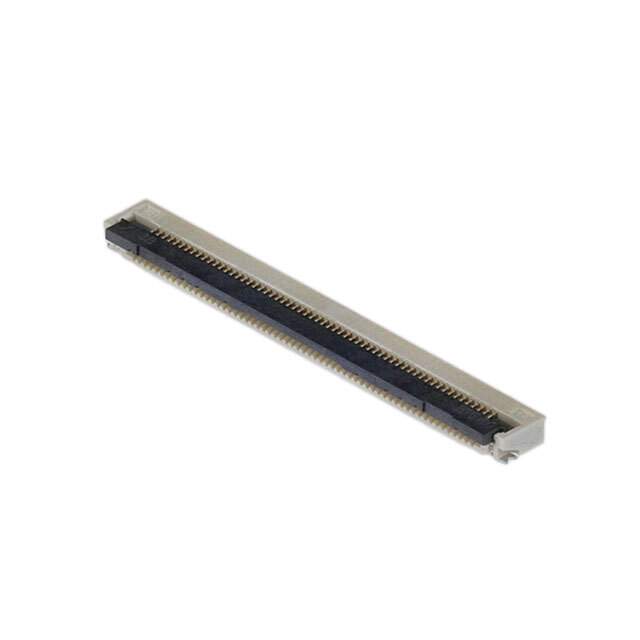

Same model may have multiple batches, images only for reference.

TF06L-60S-0.5SH(800)

Name: TF06L-60S-0.5SH(800)
Brand: Hirose Electric Co Ltd
SKU: 1333368
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TF06L-60S-0.5SH(800)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC 60POS 0.50MM / 60 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet	TF06L-60S-0.5SH(800) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Flat Flex Type	FFC, FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	60
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.083" (2.10mm)
Locking Feature	Flip Lock
Cable End Type	Tabbed
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	1.97µin (0.050µm)
Housing Color	Beige
Actuator Color	Black
Mating Cycles	20
Base Product Number	TF06L
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Part Number	26-TF06L-60S-0.5SH(800)TR,26-TF06L-60S-0.5SH(800)DKR,26-TF06L-60S-0.5SH(800)CT,480-0459-0-00
Standard Package	2,000
Win Source Part Number	1333368-TF06L-60S-0.5SH(800)
Ultra Librarian 3D Model	Ultra Librarian TF06L-60S-0.5SH(800) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd TF06L-60S-0.5SH(800) is a 60-position FFC, FPC (Flat Flexible) connector assembly with a pitch of 0.50mm.

Color: Beige
Mounting: Surface Mount, Right Angle
Height Above Board: 2.10mm
RoHS3 Compliant: Yes
Series: TF06L
Packaging: Reel - TR
Features: Solder Retention, Zero Insertion Force (ZIF)
Suitable For: FFC, FPC (Flat Flexible) Connectors
