Same model may have multiple batches, images only for reference.

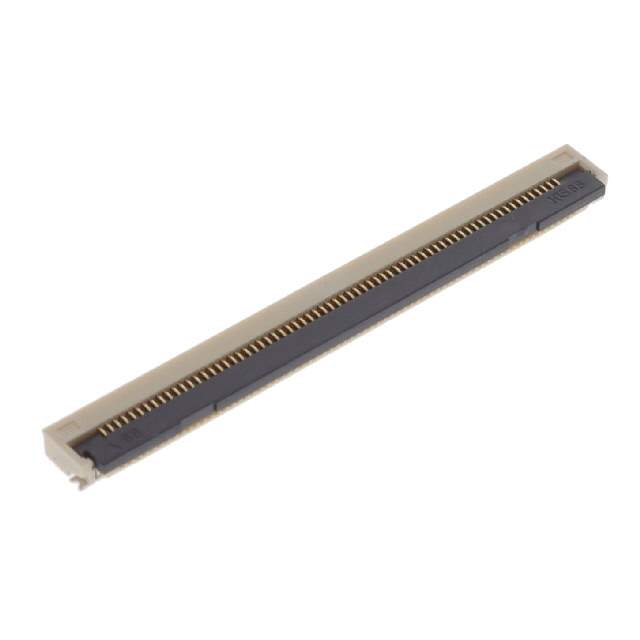

TF06L-68S-0.5SH(800) Real Image
Same model may have multiple batches, images only for reference.

TF06L-68S-0.5SH(800)

Part No TF06L-68S-0.5SH(800)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC 68POS 0.50MM / 68 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
TF06L-68S-0.5SH(800) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 68
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.083" (2.10mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.97µin (0.050µm)
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number TF06L
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 26-TF06L-68S-0.5SH(800)TR,26-TF06L-68S-0.5SH(800)CT,26-TF06L-68S-0.5SH(800)DKR,480-0413-0-00
Standard Package 2,000
Win Source Part Number 1333292-TF06L-68S-0.5SH(800)
Ultra Librarian 3D Model Ultra Librarian TF06L-68S-0.5SH(800) CAD Model

Description

The Hirose Electric Co Ltd TF06L-68S-0.5SH(800) connector is an FFC/FPC connector assembly with a 68-position layout.

  • Pitch: 0.020" (0.50mm)
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Contact Finish: Gold
  • Contact Finish Thickness: 1.97µin (0.050µm)
  • Voltage Rating: 50V
  • Height Above Board: 0.083" (2.10mm)
  • Mounting: Surface-Mounted with Right-Angle Orientation
  • Standard Package: 2,000
  • ROHS3 Compliant: True
