Same model may have multiple batches, images only for reference.

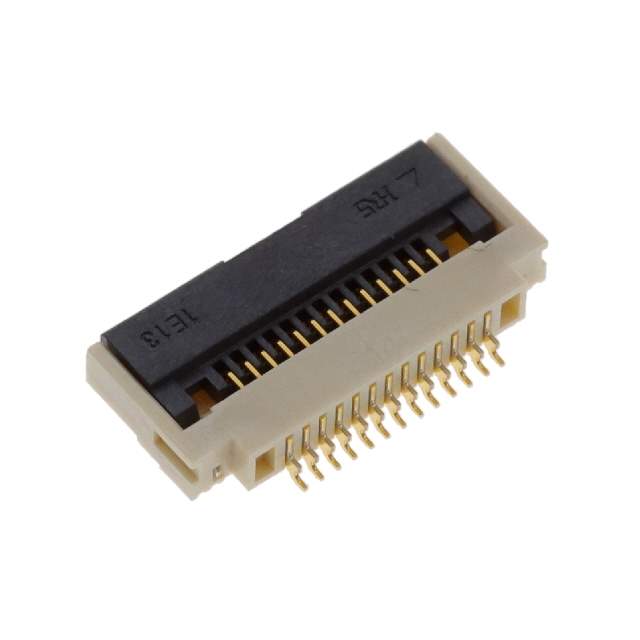

TF31-13S-0.5SH(800) Real Image
Same model may have multiple batches, images only for reference.

TF31-13S-0.5SH(800)

Part No TF31-13S-0.5SH(800)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC 13POS 0.50MM SMD
Datasheet
TF31-13S-0.5SH(800) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 13 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series TF31
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name TF31
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 26-TF31-13S-0.5SH(800)CT, 480-0177-0-00, 26-TF31-13S-0.5SH(800)DKR, 26-TF31-13S-0.5SH(800)TR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 899494-TF31-13S-0.5SH(800)
Ultra Librarian 3D Model Ultra Librarian TF31-13S-0.5SH(800) CAD Model

Description

The Hirose Electric Co Ltd TF31 is a 13-position FFC/FPC connector with a bottom 0.020 inches (0.50mm) surface mount and right angle mounting style.

  • Voltage: It is rated for a voltage of 50V
  • Operating Temperature Range: and is suitable for use in a temperature range of -40°C to 85°C.
  • Package: The connector is available in a reel packaging
  • Supply and Demand Status: and has a supply and demand status of balance.
  • Material: It is made of polyamide (PA) and nylon insulation material.
  • Connection: The TF31 is suitable for board to cable/wire connections.
