Same model may have multiple batches, images only for reference.

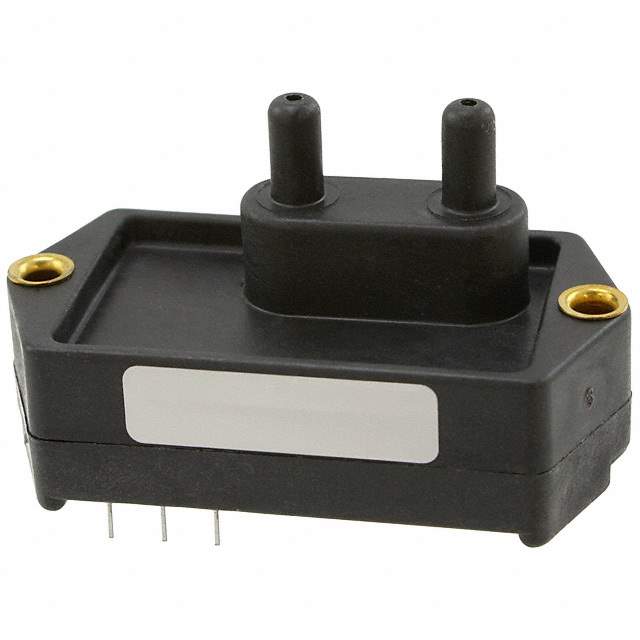

162PC01D Real Image
Same model may have multiple batches, images only for reference.

162PC01D

Part No 162PC01D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 27.68" H2O SIP / Pressure Sensor 1PSI (6.89kPa) Differential Male - 0.2" (5mm) Tube, Dual 1 V ~ 7 V 3-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series 160PC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure 1PSI (6.89kPa)
Output Type Analog Voltage
Output 1 V ~ 7 V
Accuracy ±1%
Voltage - Supply 6V ~ 16V
Port Size Male - 0.2" (5mm) Tube, Dual
Port Style Barbless
Features Amplified Output, Temperature Compensated
Maximum Pressure 5PSI (34.47kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 3-SIP Module
Base Product Number 162PC01
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 480-5611,162PC01D-ND,2266-162PC01D
Standard Package 10
Win Source Part Number 1224120-162PC01D
Ultra Librarian 3D Model Ultra Librarian 162PC01D CAD Model

Description

Honeywell Sensing and Productivity Solutions presents a pressure sensor with part number 1224120-162PC01D.

  • Product Type: Differential Pressure Sensor
  • Operating Pressure: 1PSI (6.89kPa)
  • Maximum Pressure: 5PSI (34.47kPa)
  • Output Type: Analog Voltage
  • Output Range: 1 V ~ 7 V
  • Accuracy: ±1%
  • Temperature Compensated: Yes
  • Package: Bulk with a standard package of 10
  • Mounting: Board Mounting
  • Port Size: Male - 0.2" (5mm) tube, dual
  • Voltage Range: 6V ~ 16V
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • MSL Level: Unlimited
  • HTSUS: 9026.20.4000
