Same model may have multiple batches, images only for reference.

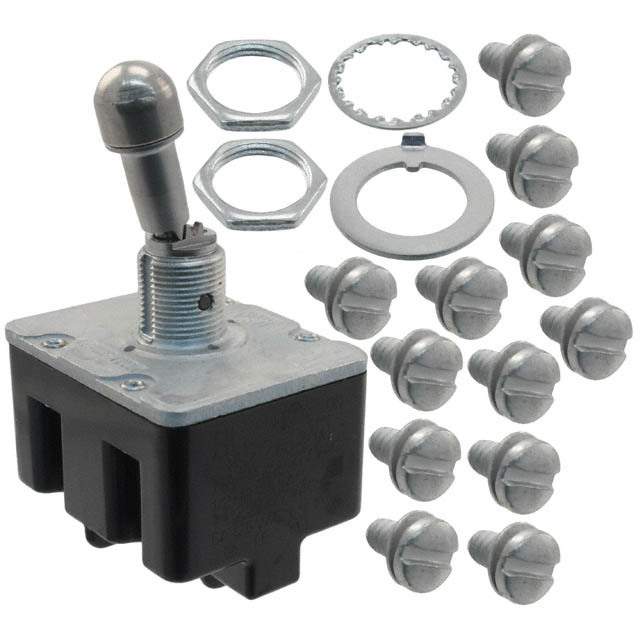

4TL1-1A Real Image
Same model may have multiple batches, images only for reference.

4TL1-1A

Part No 4TL1-1A
Manufacturer Honeywell
Catalog Toggle Switches
Description SWITCH TOGGLE 4PDT 15A 125V  /  Toggle Switch 4PDT Panel Mount
Datasheet
4TL1-1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr Honeywell Sensing and Productivity Solutions
Series TL
Package Bulk
Mounting Type Panel Mount
Circuit 4PDT
Switch Function On-Off-On
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Locking Lever
Actuator Length 26.67mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.40mm Dia
Bushing Thread 15/32-32
Ingress Protection Environment Sealed
Temperature Range - Operating -65°C ~ 71°C
Actuator Material Nickel Plated
Base Product Number 4TL1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names 480-3458,4TL11A,2266-4TL1-1A,4TL1-1A-ND
Standard Package 1
Win Source Part Number 1024278-4TL1-1A
Ultra Librarian 3D Model Ultra Librarian 4TL1-1A CAD Model

Description

The Honeywell Sensing and Productivity Solutions 4TL1-1A is a toggle switch.

  • Part Type: OEM
  • Win Source Part Number: 1024278
  • Mounting Type: Panel Mount
  • Current Rating: 15A (AC)
  • Ingress Protection: Environment Sealed
  • Poles and Throw: 4PDT
  • Actuator Type: Locking Lever
  • Panel Cutout Diameter: 12.40mm
  • Bushing Thread: 15/32-32
