Same model may have multiple batches, images only for reference.

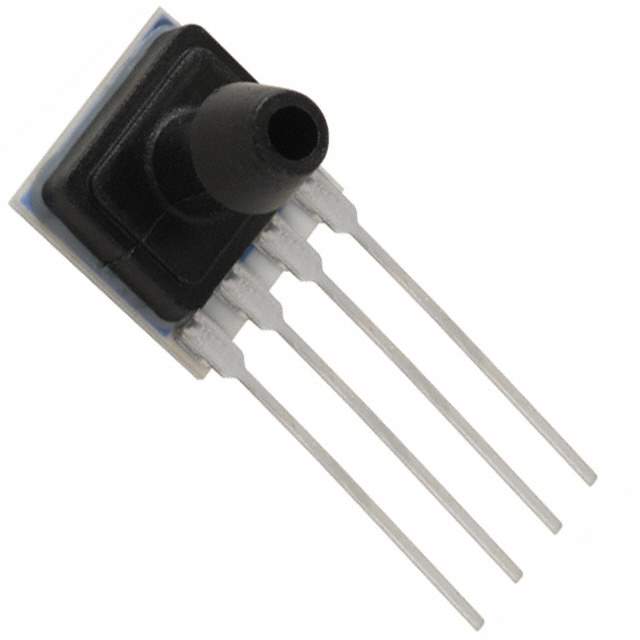

CPC05GFC Real Image
Same model may have multiple batches, images only for reference.

CPC05GFC

Part No CPC05GFC
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR VACUUM GAUGE 5PSI  /  Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.15" (3.8mm) Tube 0 mV ~ 60 mV (12V) 4-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series CPC
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 5PSI (34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 60 mV (12V)
Accuracy ±2%
Voltage - Supply 3V ~ 16V
Port Size Male - 0.15" (3.8mm) Tube
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 15PSI (103.42kPa)
Temperature Range - Operating -25°C ~ 85°C
Package / Case 4-SIP Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 480-2647-5
Standard Package 5
Win Source Part Number 1189967-CPC05GFC
Ultra Librarian 3D Model Ultra Librarian CPC05GFC CAD Model

Description

The CPC05GFC is a pressure sensor/transducer manufactured by Honeywell Sensing and Productivity Solutions. This product is manufactured by Honeywell Sensing and Productivity Solutions.

  • Pressure Type: Vented Gauge
  • Operating Pressure: 5PSI
  • Output: 0mV-60mV (12V)
  • Accuracy: ±2%
  • Port Size: Male 0.15" (3.8mm) Tube
  • Port Style: Barbed
  • Voltage Supply: 3V-16V
  • Operating Temperature Range: -25°C to 85°C
