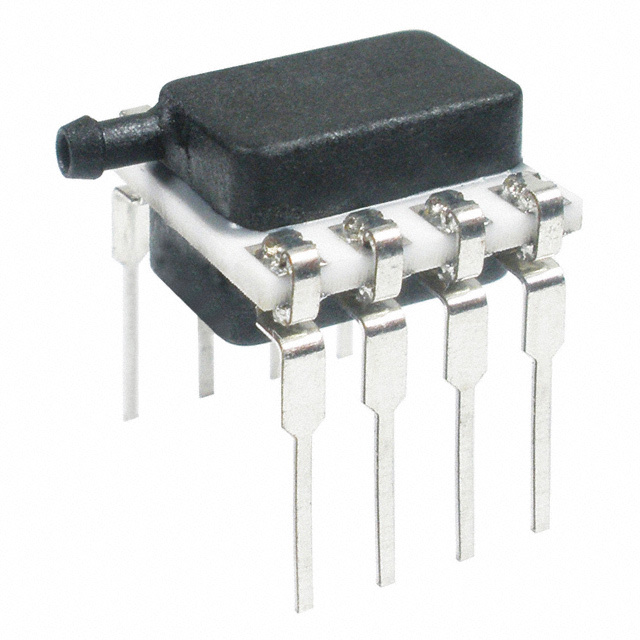

Same model may have multiple batches, images only for reference.
HSCDNNV100PGSA5 Honeywell – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HSCDNNV100PGSA5

Part No HSCDNNV100PGSA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 100PSIG 12BIT 8DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 100PSI (689.48kPa)
Output Type SPI
Output 12 b
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 250PSI (1723.69kPa)
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Through Hole
Case / Package 8-DIP (0.524", 13.30mm)
Supplier Device Package 8-DIP
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1600143-HSCDNNV100PGSA5
Ultra Librarian 3D Model Ultra Librarian HSCDNNV100PGSA5 CAD Model
