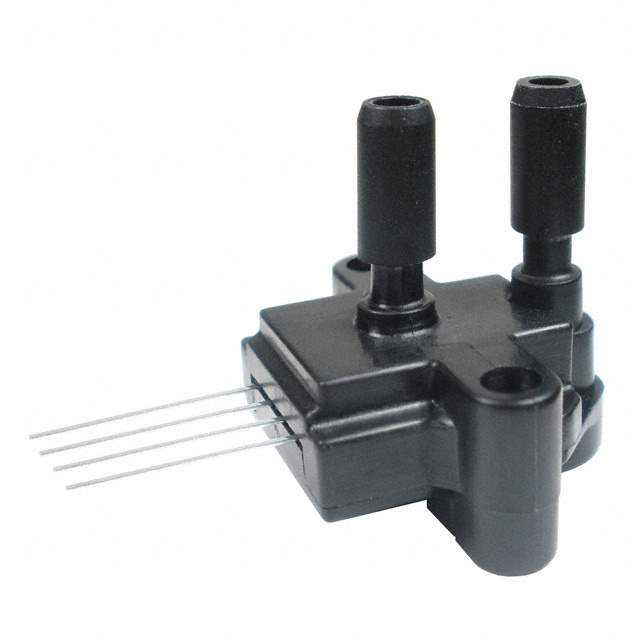

HSCSNBD004MDAA5 Real Image
Same model may have multiple batches, images only for reference.

HSCSNBD004MDAA5

Part No HSCSNBD004MDAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor -0.004bar to 0.004bar Differential Medical 4-Pin SIP Module
Datasheet
HSCSNBD004MDAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series TruStability HSC
Pressure Type Differential
Operating Pressure ±0.06 PSI (±0.4 kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Operating Supply Voltage 4.95 V ~ 5.05 V
Port Size Male - 0.19" (4.8mm) Tube, Dual
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±9.79 PSI (±67.5 kPa)
Operating Temperature Range -20°C ~ 85°C
Package 4-SIP, Dual Ports, Same Side
Manufacturer Package 4-SIP
Win Source Part Number 769819-HSCSNBD004MDAA5
Popularity Medium
Supply and Demand Status Limited
Family Name HSCSNBD004MDAA5
Introduction Date August 04, 2014
Country of Origin China, Mexico, United States of America
Estimated EOL Date 2032
Ultra Librarian 3D Model Ultra Librarian HSCSNBD004MDAA5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions TruStability HSC pressure sensor manufactured by Honeywell Sensing and Productivity Solutions is an amplified output, temperature-compensated product.

  • Pressure Type: Differential
  • Pressure Range: ±0.06 PSI (±0.4 kPa)
  • Port Style: Male - 0.19" (4.8mm) tube, dual port
  • Port Size: Barbless
  • Operating Supply Voltage: 4.95 V ~ 5.05 V
  • Output: 0.5 V ~ 4.5 V
  • Accuracy: ±0.25%
  • Package: 4-SIP, dual ports, same side
  • Output Type: Analog Voltage
