Same model may have multiple batches, images only for reference.

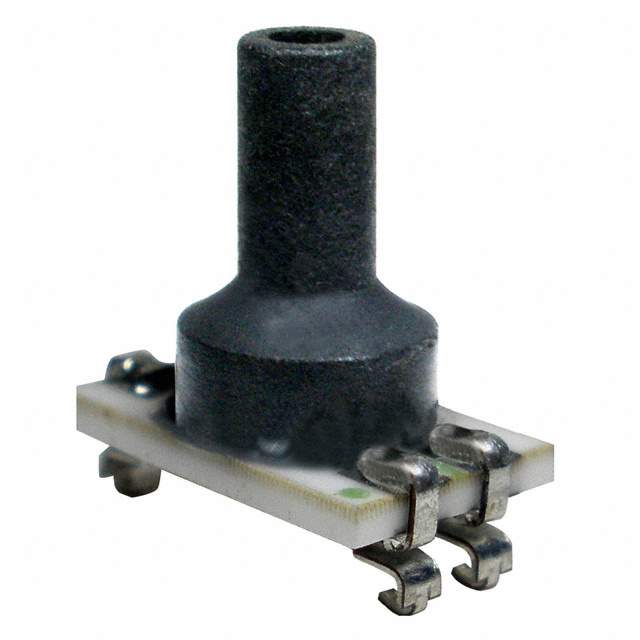

NBPMLNN060PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPMLNN060PGUNV

Part No NBPMLNN060PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 60 PSIG UNAMPLIFIED SMD / Pressure Sensor 0psi to 60psi Gage 4-Pin SMT
Datasheet
NBPMLNN060PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 60 PSI (413.69 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 105 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.13" (3.18mm) Tube
Port Style Barbless
Termination Style Surface Mount
Maximum Pressure 120 PSI (827.37 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-SMD, J-Lead, Top Port
Win Source Part Number 790553-NBPMLNN060PGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPMLNN060PG
Introduction Date June 29, 2012
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian NBPMLNN060PGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions 790553-NBPMLNN060PGUNV is a Wheatstone bridge output type sensor with an operating pressure of 60 PSI (413.69 kPa) and a maximum pressure of 120 PSI (827.37 kPa).

  • Pressure Type: Vented Gauge
  • Port Size: Male - 0.13" (3.18mm) tube
  • Port Style: Barbless
  • Operating Supply Voltage: 1.8 V ~ 12 V
  • Accuracy: ±0.25%
  • Package: 4-SMD, J-Lead, Top Port
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
